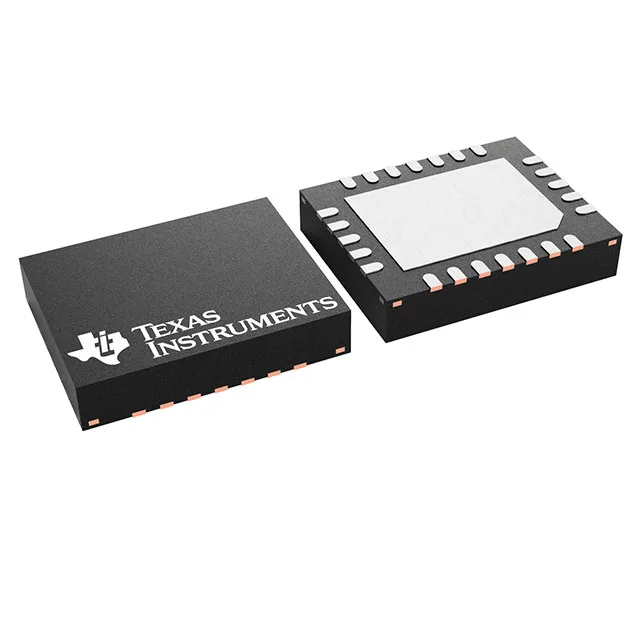

TPS272C45DRHFR Texas Instruments 2-Ch High-Side Switch

MPNTPS272C45DRHFR
End of Life

Texas Instruments TPS272C45DRHFR, 2-channel high-side switch, 45 mOhm Rds(on), 5.8 A per channel, 6-36 V load, 24-VFQFN exposed pad, Tape & Reel.

$5.35Ref. price · indicative, final on quote
TPS272C45DRHFR datasheet
Packaging24-VFQFN Exposed Pad
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

TPS272C45DRHFR Technical Specifications
ParameterValue
Input typeNon-Inverting
Output typeN-Channel
Switch typeGeneral Purpose
Mounting typeSurface Mount
Voltage - load6V ~ 36V
Voltage - supply (Vcc (Vdd))Not Required
Current - output5.8A
Number of outputs2
InterfaceOn/Off
Operating temperature-40°C ~ 125°C (TJ)
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesLoad Discharge, Slew Rate Controlled
Rds on45mOhm
Case24-VFQFN Exposed Pad
Fault protectionCurrent Limiting (Adjustable), Over Temperature, Over Voltage, UVLO
Output configurationHigh Side
Ratio - Input:Output1:1

Product details

2-channel high-side switch with 45 mOhm Rds(on)

The TPS272C45DRHFR is a 2-channel high-side switch from Texas Instruments, delivering up to 5.8 A per channel with a typical on-resistance of 45 mOhm. The output configuration is high-side with N-channel FETs, controlled by a simple On/Off interface with non-inverting input.

Fault protection and thermal range

Integrated fault protection includes adjustable current limiting, over-temperature shutdown, over-voltage clamping, and under-voltage lockout (UVLO). These features allow the switch to survive shorted loads and supply transients without external clamp diodes in many cases.
