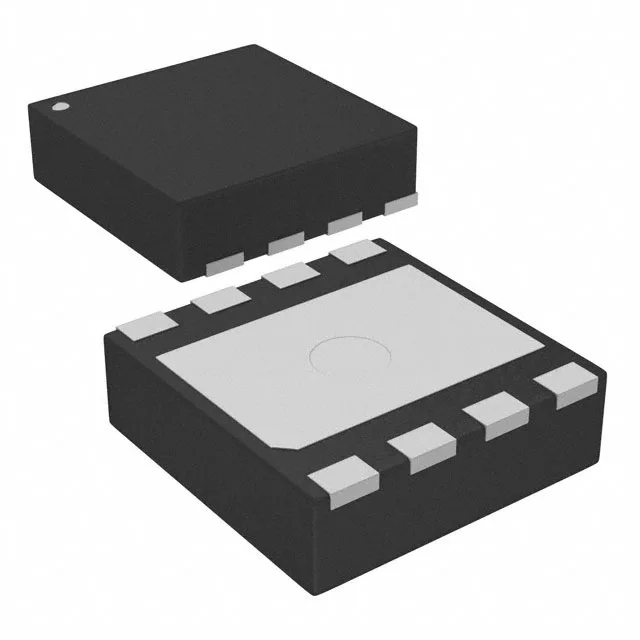

TPS2556QDRBTQ1
Texas Instruments
[IN STOCK] In Stock: 2 pcs
MOQ 1 · Tape & Reel (TR); Cut Tape (CT) · RoHS · EIA-481 · DAP/DDP · T/T
Technical specifications
| Parameter / Attribute | Specification / Value |
|---|---|
| Series | Automotive, AEC-Q100 |
| Input type | Non-Inverting |
| Output type | N-Channel |
| Type | General Purpose |
| Mounting | Surface Mount |
| Voltage - load | 2.5V ~ 6.5V |
| Voltage - supply (Vcc (Vdd)) | Not Required |
| Output current | 5A |
| I/O channels | 1 |
| Interface | On/Off |
| Operating temperature | -40°C~125°C(TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Slew Rate Controlled, Status Flag |
| Rds on | 22mOhm |
| Case | 8-VDFN Exposed Pad |
| Fault protection | Current Limiting (Adjustable), Over Temperature, UVLO |
| Output configuration | High Side |
| Ratio - Input:Output | 1:1 |
TPS2556QDRBTQ1
