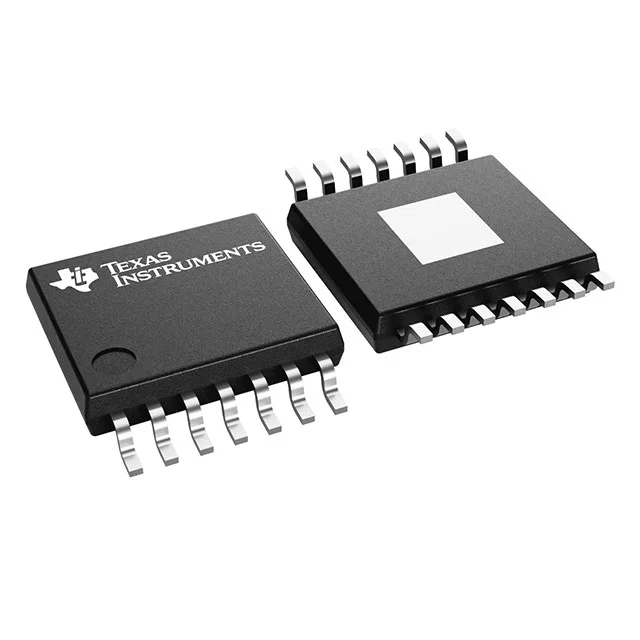

TPS1HC100BQPWPRQ1
Texas Instruments
[IN STOCK] In Stock: 1,401 pcs
MOQ 1 · Tape & Reel (TR); Cut Tape (CT) · RoHS · EIA-481 · DAP/DDP · T/T
Technical specifications
| Parameter / Attribute | Specification / Value |
|---|---|
| Series | Automotive, AEC-Q100 |
| Input type | Non-Inverting |
| Output type | N-Channel |
| Type | General Purpose |
| Mounting | Surface Mount |
| Voltage - load | 2.6V ~ 28V |
| Voltage - supply (Vcc (Vdd)) | Not Required |
| Output current | 2.5A |
| I/O channels | 1 |
| Interface | On/Off |
| Operating temperature | -40°C~125°C(TA) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Latch Function, Slew Rate Controlled |
| Rds on | 94mOhm |
| Case | 14-TSSOP (0.173\", 4.40mm Width) Exposed Pad |
| Fault protection | Current Limiting (Fixed), Over Load, Over Temperature, Reverse Battery, Short Circuit, UVLO |
| Output configuration | High Side |
| Ratio - Input:Output | 1:1 |
