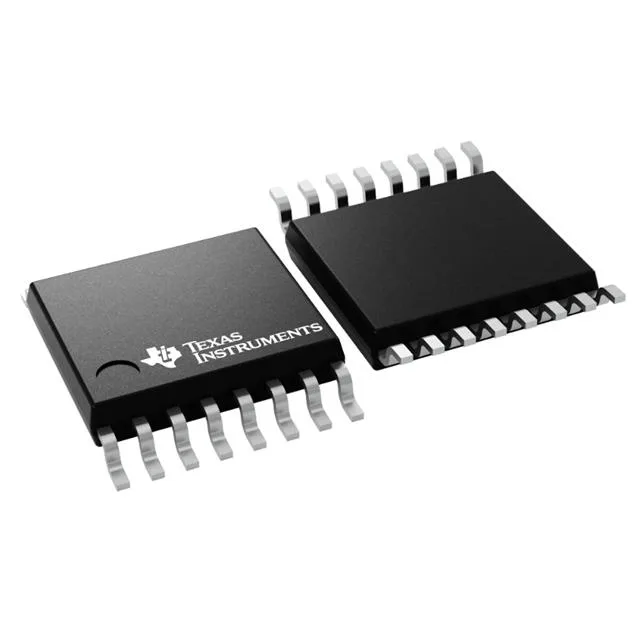

Texas Instruments TMUX8213PWR
MPNTMUX8213PWR
End of Life
IC SW SPST-NO/NCX4 7OHM 16TSSOP
$15.03108Price · pay online now
Packaging16-TSSOP (0.173", 4.40mm Width)
RoHSROHS3 Compliant
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Surface Mount |
| Voltage - supply, single (V+) | 10V ~ 100V |
| Current - leakage (IS(off)) | 10pA (Typ) |
| Operating temperature | -40°C ~ 85°C (TA) |
| -3db bandwidth | 420MHz |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Crosstalk | -110dB @ 100kHz |
| Case | 16-TSSOP (0.173\", 4.40mm Width) |
| Switch circuit | SPST - NO/NC |
| Charge injection | -1300pC |
| Number of circuits | 4 |
| On-State resistance | 7Ohm |
| Switch time (Ton, toff) | 4µs, 100ns (Typ) |
| Multiplexer (Demultiplexer circuit) | 1:1 |
| Channel-to-Channel matching (ΔRon) | 200mOhm (Typ) |
| Channel capacitance (CS(off), CD(off)) | 12pF, 12pF |
