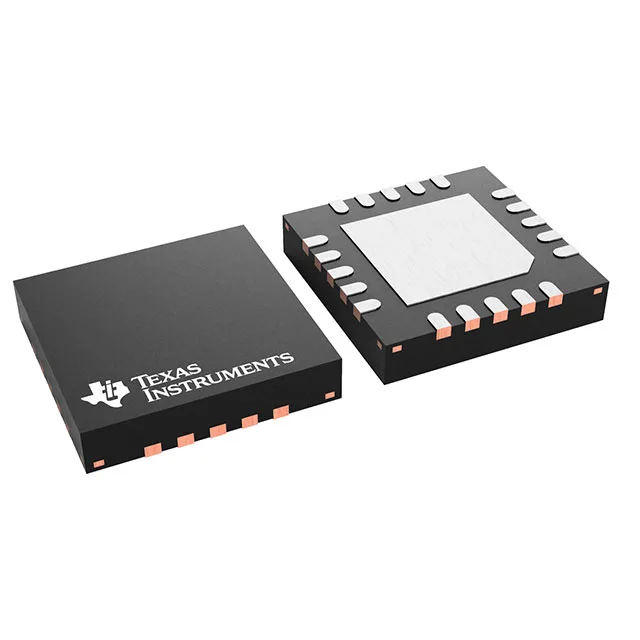

Texas Instruments TMUX7236RUMR
MPNTMUX7236RUMR
End of Life
IC SW SPDT-NO/NCX2 2.4OHM 16WQFN
$10.67652Price · pay online now
$10.68 / ea
6 in stock — maximum per order · 3–4 days lead time
Packaging16-WQFN Exposed Pad
RoHSROHS3 Compliant
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Surface Mount |
| Voltage - supply, single (V+) | 4.5V ~ 44V |
| Current - leakage (IS(off)) | 1nA |
| Operating temperature | -40°C ~ 125°C (TA) |
| -3db bandwidth | 35MHz |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Case | 16-WQFN Exposed Pad |
| Switch circuit | SPDT - NO/NC |
| Charge injection | 104pC |
| Number of circuits | 2 |
| On-State resistance | 2.4Ohm |
| Switch time (Ton, toff) | 130ns, 160ns |
| Multiplexer (Demultiplexer circuit) | 2:1 |
| Channel-to-Channel matching (ΔRon) | 100mOhm (Typ) |
| Channel capacitance (CS(off), CD(off)) | 45pF, 55pF |
