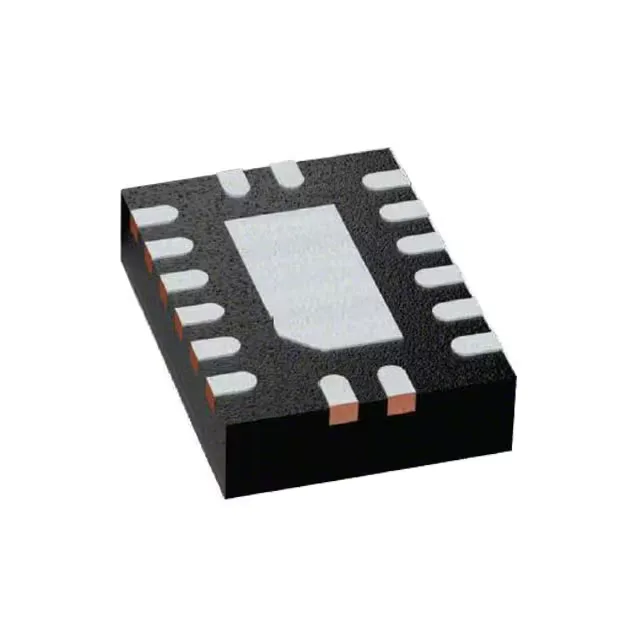

Texas Instruments TMUX1309QBQBRQ1
MPNTMUX1309QBQBRQ1
End of Life
AUTOMOTIVE, 2-CHANNEL, 4:1 GENER
$1.08792Price · pay online now
Packaging16-WFQFN Exposed Pad
RoHSROHS3 Compliant
SeriesAutomotive, AEC-Q100
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Automotive, AEC-Q100 |
| Mounting | Surface Mount |
| Voltage - supply, single (V+) | 1.62V ~ 5.5V |
| Current - leakage (IS(off)) | 1nA (Typ) |
| Operating temperature | -40°C ~ 125°C (TA) |
| -3db bandwidth | 500MHz |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Crosstalk | -90dB @ 1MHz |
| Case | 16-WFQFN Exposed Pad |
| Switch circuit | SP4T |
| Charge injection | -6.5pC |
| Number of circuits | 2 |
| On-State resistance | 195Ohm |
| Switch time (Ton, toff) | 32ns, 40ns |
| Multiplexer (Demultiplexer circuit) | 4:1 |
| Channel capacitance (CS(off), CD(off)) | 14pF, 7pF |
| Channel-to-Channel matching (ΔRon) | 7Ohm |
