Texas Instruments TMS320F2811PBKA — Microcontrollers & Processors (MCU / MPU / DSP)

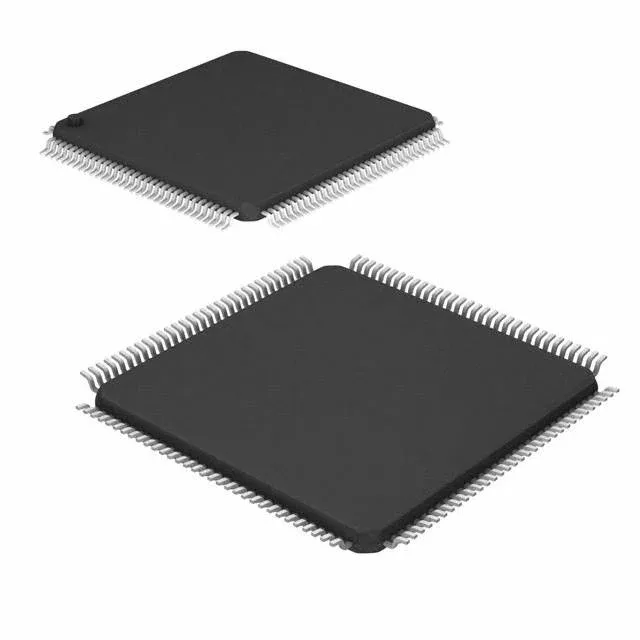

TMS320F2811PBKA C2000 C28x Fixed-Point DSP, 150 MHz, 256KB Flash

MPNTMS320F2811PBKA
Active

Texas Instruments TMS320F2811PBKA, C2000 C28x Fixed-Point 32-bit DSP, 150 MHz, 256KB Flash, 18K x 16 RAM, CANbus/SCI/SPI, 56 I/O, 128-LQFP, -40 to 85°C, AEC-Q100.

$32.1900Ref. price · indicative, final on quote
Texas Instruments TMS320F2811PBKA datasheet (PDF)
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

TMS320F2811PBKA specifications
ParameterValue
SeriesAutomotive, AEC-Q100, C2000™ C28x Fixed-Point
MountingSurface Mount
Oscillator typeInternal
Program memory typeFLASH
Voltage - supply (Vcc (Vdd))1.81V ~ 2V
Operating temperature-40°C~85°C(TA)
Speed150MHz
PackageTray
RAM size18K x 16
Core size32-Bit Single-Core
PeripheralsDMA, POR, PWM, WDT
ConnectivityCANbus, McBSP, SCI, SPI, UART/USART
Number of i (O)56
Core processorC28x
Case128-LQFP
Data convertersA/D 16x12b
Program memory size256KB (128K x 16)

Product details

What this DSP brings to a real-time control loop

The Texas Instruments TMS320F2811PBKA is a 32-bit fixed-point C28x DSP clocked at 150 MHz, with 256 KB of Flash program memory and 18K x 16 words of RAM. It is AEC-Q100 qualified for automotive applications, making it a fit for under-hood motor control, powertrain, and power conversion designs where deterministic loop timing matters. The 150 MHz core delivers a single-cycle 32×32-bit multiply-accumulate — the throughput needed for sensorless field-oriented control or digital power loops without an external FPGA.

At 150 MHz, the C28x executes a 32-bit MAC in one clock cycle. The fixed-point architecture requires Q-format scaling.

Surface-mount assembly is straightforward with lead-free reflow profiles.

Frequently asked questions

What is the difference between TMS320F2811PBKA and TMS320F2812PBKA?

The TMS320F2812PBKA typically offers a larger Flash memory (256 KB vs 128 KB) and additional RAM, but both share the same 150 MHz C28x core, 128-LQFP package, and AEC-Q100 qualification. The F2811PBKA is the lower-density variant for cost-sensitive designs where 256 KB Flash suffices.

What is the pinout of TMS320F2811PBKA?

The TMS320F2811PBKA uses a 128-pin LQFP (14x14 mm) with 56 general-purpose I/O. The pinout is documented in the official TI datasheet, which we can provide upon request.
