300 MHz floating-point DSP — what the clock and memory mean for the BOM

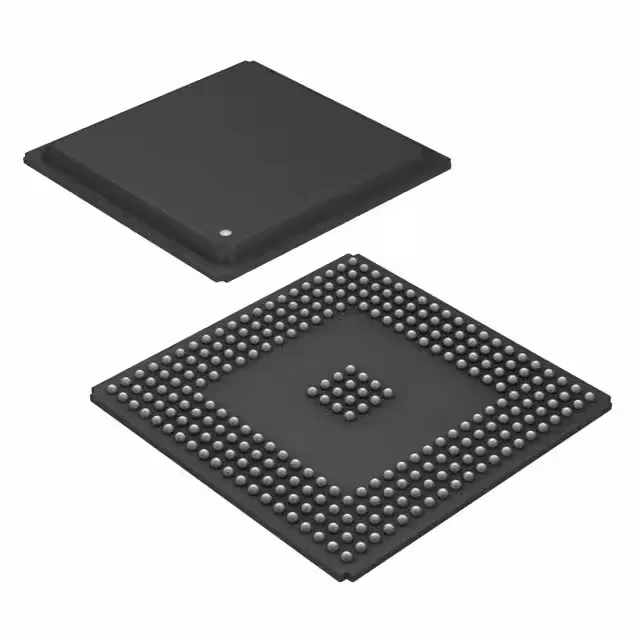

The TMS320C6713BGDP300 is a floating-point DSP from TI's C67x family, clocked at 300 MHz with 264 kB of on-chip RAM. For a real-time audio processing chain or a vibration-analysis front-end, the 300 MHz clock sets the MAC throughput ceiling, and the 264 kB scratchpad holds the active filter coefficients and buffer state without spilling to external SDRAM. The 272-ball BGA (27x27 mm) package demands a multi-layer PCB with dedicated power and ground planes — the 1.4 V core rail and 3.3 V I/O rail each need their own LDO or switching regulator, and the BGA fan-out typically pushes a 4-layer board minimum.
Peripheral set and temperature grade
The integrated peripherals — Host Port Interface, I²C, McASP, and McBSP — cover the common audio codec, serial ADC/DAC, and host-communication links without external bridge chips. The McASP port handles up to four serial data pins, enough for a stereo audio codec with S/PDIF or a multichannel ADC in a data-acquisition front-end. The operating temperature range of 0°C to 90°C (TC) limits this part to commercial-grade equipment — indoor instrumentation, audio gear, and telecom line cards.
