TM4C129ENCZADI3R

Texas Instruments

Texas Instruments Tiva C series TM4C129ENCZADI3R, 32-bit ARM Cortex-M4F MCU, 120MHz, 1MB Flash, 256K x 8 RAM, 6K x 8 EEPROM, 140 I/O, Ethernet, USB OTG, CAN, 24x12b ADC, 212-NFBGA (10x10), -40°C to 85°C.

Texas Instruments TM4C129ENCZADI3R
Download datasheet (PDF)
[IN STOCK] In Stock: 1 pcs
$29.67/ pc

Volume pricing

Buy Now

MOQ 1 · Tape & Reel (TR) · RoHS · EIA-481 · DAP/DDP · T/T

Technical specifications

TM4C129ENCZADI3R specifications
Parameter / AttributeSpecification / Value
SeriesTiva™ C
MountingSurface Mount
Oscillator typeInternal
Program memory typeFLASH
Voltage - supply (Vcc (Vdd))2.97V ~ 3.63V
Operating temperature-40°C~85°C(TA)
Speed120MHz
PackageTape & Reel (TR)
RAM size256K x 8
Core size32-Bit Single-Core
EEPROM size6K x 8
PeripheralsBrown-out Detect/Reset, DMA, Motion Control PWM, POR, PWM, WDT
ConnectivityCANbus, EBI/EMI, Ethernet, I²C, IrDA, QEI, SPI, SSI, UART/USART, USB OTG
Number of i (O)140
Core processorARM® Cortex®-M4F
Case212-VFBGA
Data convertersA/D 24x12b
Program memory size1MB (1M x 8)

Technical details

It has 1 MB Flash and 256K x 8 SRAM.

120 MHz Cortex-M4F — what it buys you

The 120 MHz core with an FPU lets you close a current-control loop at several kilohertz and still have headroom for Ethernet packet handling. The 24-channel 12-bit ADC samples synchronously with the PWM timers — useful for three-phase motor current sensing without software jitter.

Connectivity and I/O budget

The USB OTG port can act as a device for firmware updates or as a host for a USB flash drive logging data.

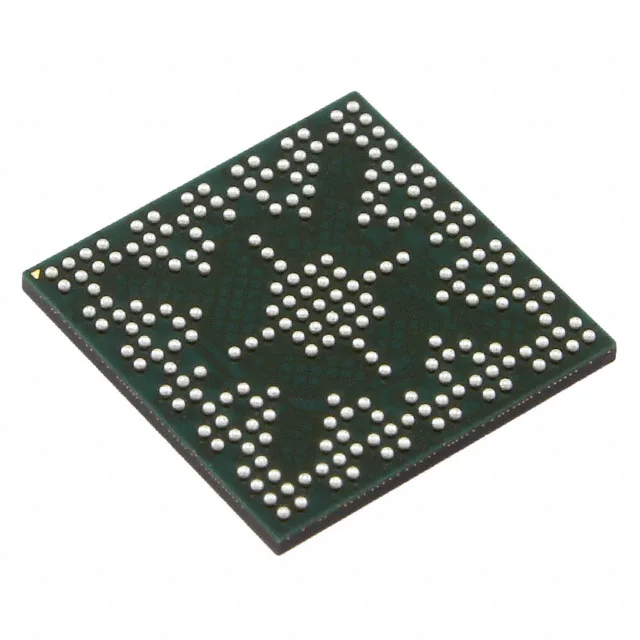

The 212-NFBGA (10x10) package is a fine-pitch BGA. Expect four-layer minimum PCB with via-in-pad or microvia for the center balls.
