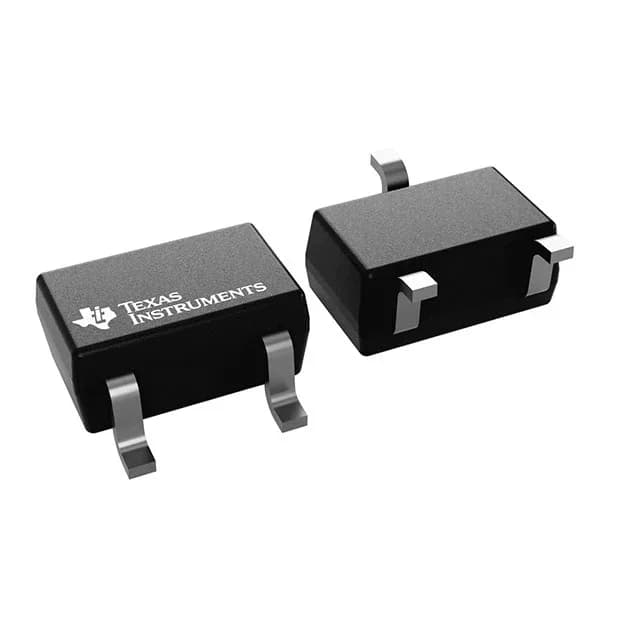

TLV803EA24DCKR Simple Reset/Power-On Reset, 2.4V Threshold

MPNTLV803EA24DCKR
End of Life

Texas Instruments TLV803EA24DCKR Simple Reset/Power-On Reset, Active Low, Open Drain, 2.4V Threshold, 130ms Minimum Reset Timeout, SC-70-3, -40°C to 125°C.

$0.65Ref. price · indicative, final on quote
PackagingSC-70, SOT-323
StockContact for availability
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

TLV803EA24DCKR Technical Specifications
ParameterValue
TypeSimple Reset/Power-On Reset
Mounting typeSurface Mount
Voltage - threshold2.4V
Number of voltages monitored1
Operating temperature-40°C ~ 125°C (TJ)
ResetActive Low
OutputOpen Drain or Open Collector
PackageTape & Reel (TR); Cut Tape (CT)
Reset timeout130ms Minimum
CaseSC-70, SOT-323

Product details

Active production — no obsolescence risk for new designs

That means TI is still manufacturing it, and there is no announced last-time-buy or end-of-life notice. For a BOM line, this part can be specified into new designs without worrying about a near-term discontinuation. If you are already using it in production, the supply channel is stable through standard distribution.

Open-drain output — wired-OR and level translation

The open-drain output lets you connect the reset pin to a pull-up resistor tied to any voltage up to the absolute maximum of the output transistor. This is useful when the supervisor runs from one supply but the reset input of the monitored IC runs at a different logic level — the pull-up rail sets the high-level voltage. It also allows multiple open-drain reset outputs to be wired-OR together, so that any fault condition pulls the shared line low.

Frequently asked questions

What is the reset timeout of TLV803EA24DCKR?

The reset timeout is a minimum of 130ms. This is the guaranteed low period after the monitored voltage rises above the threshold, ensuring the system has time to stabilize before the reset is released.

What are the equivalent parts for TLV803EA24DCKR?

The closest functional peer is the TLV803EA29VDBZR, which shares the same active-low open-drain output, 130ms minimum reset timeout, and SC-70-3 package, but has a 2.9V threshold instead of 2.4V. The TLV803ED29DBZR is another alternative with a 33ms minimum reset timeout and a 2.9V threshold. Neither is a drop-in replacement — the threshold voltage and timeout must match your design's requirements.

What is TLV803EA24DCKR's listed type?

It is listed as a Simple Reset/Power-On Reset device. This means it generates a reset signal when power is first applied or when the supply voltage dips below the threshold, with no additional features like watchdog timers or manual reset inputs.

What is TLV803EA24DCKR's listed reset?

The reset is Active Low, meaning the output goes low when the reset condition is true (voltage below threshold or during power-up). The output is open-drain, so it requires an external pull-up resistor to a logic voltage.
