Texas Instruments TLV62569DRLR — Analog & Data Acquisition
Texas Instruments

TLV62569DRLR Texas Instruments Buck Regulator, 2A, 1.5MHz

MPNTLV62569DRLR
End of Life

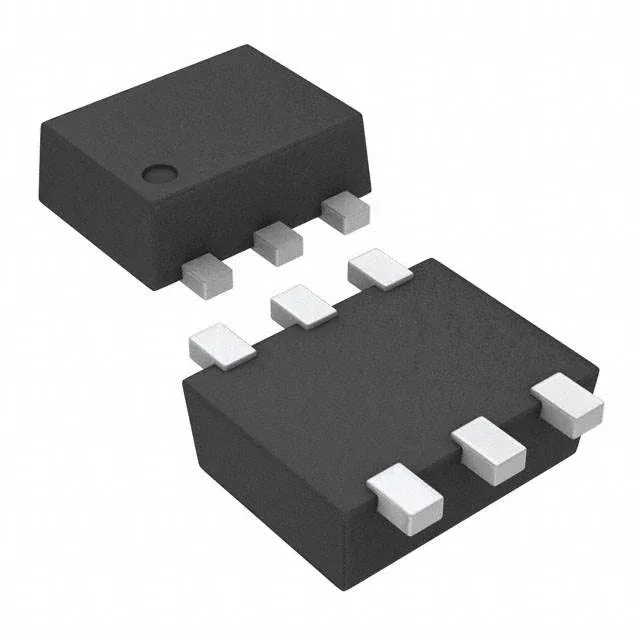

Texas Instruments TLV62569DRLR step-down buck regulator, adjustable output, 2A, 1.5MHz switching, SOT-5X3 package, surface mount.

$0.46Ref. price · indicative, final on quote
TLV62569DRLR datasheet
PackagingSOT-563, SOT-666
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

TLV62569DRLR Technical Specifications
ParameterValue
Output typeAdjustable
Mounting typeSurface Mount
Voltage - input5.5V
Voltage - output5.5V
Voltage - output (Min (Fixed))0.6V
Current - output2A
Frequency1.5MHz
Operating temperature-40°C ~ 125°C (TJ)
PackageTape & Reel (TR); Cut Tape (CT)
FunctionStep-Down
TopologyBuck
CaseSOT-563, SOT-666
Output configurationPositive
Synchronous rectifierYes

Product details

2A step-down with synchronous rectification

The TLV62569DRLR is a 2A-capable step-down (buck) converter from Texas Instruments, switching at 1.5MHz and integrating a synchronous rectifier. The input range covers single-cell Li-ion (3.0-4.2V) and 3.3V or 5V regulated rails.

Housed in a SOT-5X3 package (the supplier device package designation for this SOT-563/SOT-666 footprint), the part occupies roughly 1.6 mm × 1.6 mm of board area. The 125°C TJ ceiling means the part can deliver 2A into a 85°C ambient with adequate board copper; at higher ambients the output current must be derated per the thermal impedance in the datasheet.

Sourced through authorized distribution and independent channels.

Frequently asked questions

What compliance documentation does Texas Instruments provide for TLV62569DRLR?

Texas Instruments provides ROHS3 compliance certification. The part is also REACH compliant. No UL or IEC certification is listed on the standard product page.
