0.225 ns propagation delay — signal-chain timing margin
The TLV3801DSGT: At 0.225 ns typical, this comparator resolves edges faster than most discrete logic gates — meaning it catches narrow pulses a slower comparator would miss entirely, such as in overcurrent detection for high-frequency switching converters or zero-crossing circuits in resonant power stages.
Industrial temperature range and noise immunity
The 2 mV built-in hysteresis prevents output chatter on slow-moving input signals — a common failure mode when a comparator sits on a noisy sensor line near a switching power stage. Typical CMRR and PSRR both sit at 80 dB, so the comparator rejects common-mode noise on the input pair and supply-rail ripple equally well.
Package and board integration for high-speed layout

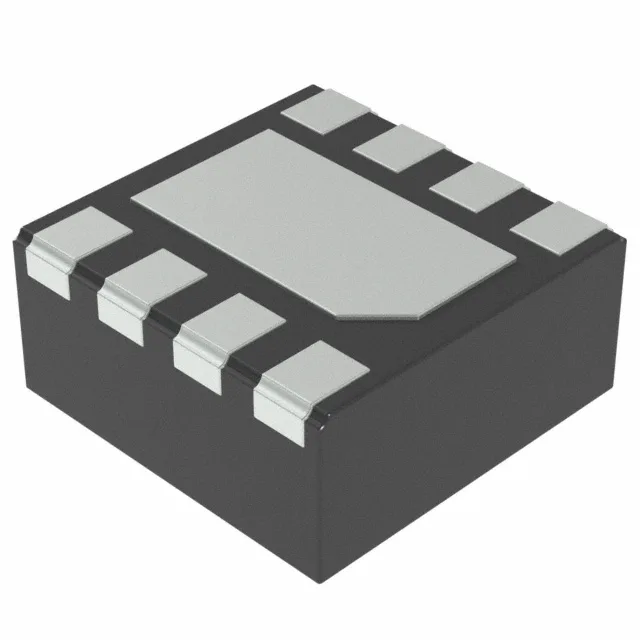

Housed in an 8-WSON (2x2 mm) package with a wettable flank, the TLV3801DSGT supports automated optical inspection (AOI) of the solder joints after reflow — a requirement for automotive-grade assembly lines. Surface-mount assembly with the wettable flank means the side of the package wets with solder, giving a visible fillet that X-ray or AOI systems can verify. This is particularly useful when the comparator sits on a dense board where the bottom-side pad is partially hidden by adjacent components.
