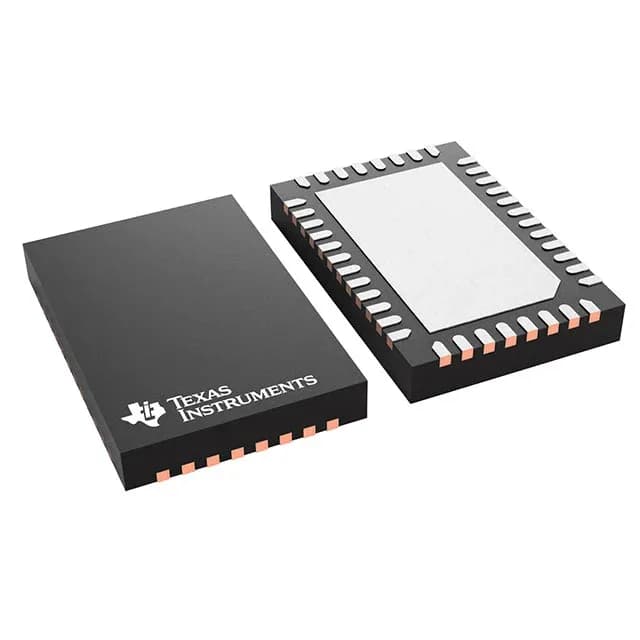

TDP1204RNQR Buffer ReDriver, 12 Gbps, HDMI 2.1, 40-WQFN

MPNTDP1204RNQR
End of Life

Texas Instruments TDP1204RNQR, Buffer/ReDriver, Differential Input/Output, 4 Channels, 12 Gbps Max Data Rate, 220 ps Delay, 3.135V–3.465V Supply, 40-WFQFN Exposed Pad, 0°C to 85°C.

$6.41Ref. price · indicative, final on quote
TDP1204RNQR datasheet
Packaging40-WFQFN Exposed Pad
StockContact for availability
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

TDP1204RNQR Technical Specifications
ParameterValue
TypeBuffer, ReDriver
Mounting typeSurface Mount
Voltage3.135V ~ 3.465V
Current - supply16µA
Operating temperature0°C ~ 85°C (TA)
InputDifferential
OutputDifferential
PackageTape & Reel (TR); Cut Tape (CT)
Delay time220ps
ApplicationsDisplayPort, HDMI
Case40-WFQFN Exposed Pad
Data rate12Gbps
Number of channels4
Signal conditioningInput Equalization, Output Pre-Emphasis

Product details

12 Gbps re-driver for DP++ 1.1 to HDMI 2.1

The Texas Instruments TDP1204RNQR is a 4-channel differential buffer and re-driver designed to bridge DisplayPort++ 1.1 sources to HDMI 2.1 sinks at up to 12 Gbps per lane. It applies input equalization and output pre-emphasis to recover signal integrity over longer PCB traces or cable runs — effectively cleaning up the eye diagram before the sink's receiver. The 220 ps propagation delay is tight enough to stay within link timing budgets for 4K and 8K video paths. Supply voltage sits in the 3.135 V to 3.465 V range, and the quiescent draw of 16 µA keeps the thermal footprint low in dense layouts.

Signal conditioning — why it matters for the BOM

The input equalization and output pre-emphasis recover signal integrity over long traces or cables at 12 Gbps.

Frequently asked questions

Does the TDP1204RNQR support HDMI 2.1 data rates?

Yes, it handles 12 Gbps per lane, which is the full HDMI 2.1 data rate for a single lane. The part is specified for DisplayPort 1.1 to HDMI 2.1 conversion.

What is the closest functional second-source to the TDP1204RNQR?

The TUSB1142RNQR is a 10 Gbps re-driver in a similar 40-WQFN package, but it targets USB 3.2 applications and lacks the HDMI/DisplayPort-specific equalization profile. It is not a pin-compatible drop-in for this signal chain.
