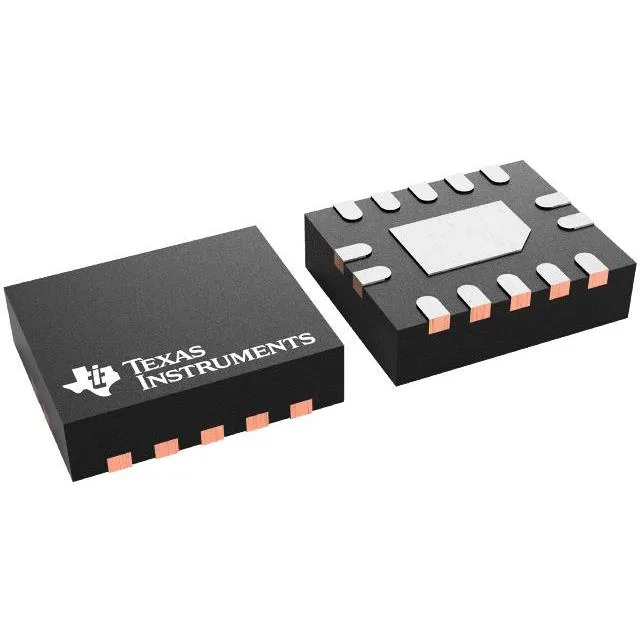

Texas Instruments SN74AHCT08QWBQARQ1
MPNSN74AHCT08QWBQARQ1
End of Life
IC GATE AND 4CH 2-INP 14WQFN
$0.86196Price · pay online now
Packaging14-WFQFN Exposed Pad
RoHSROHS3 Compliant
Series74AHCT
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 74AHCT |
| Logic type | AND Gate |
| Mounting | Surface Mount |
| Supply voltage | 4.5V ~ 5.5V |
| Current - quiescent | 2 µA |
| Current - output high, low | 8mA, 8mA |
| I/O channels | 2 |
| Operating temperature | -40°C ~ 125°C |
| Grade | Automotive |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Qualification | AEC-Q100 |
| Case | 14-WFQFN Exposed Pad |
| Number of circuits | 4 |
| Input logic level - low | 0.8V |
| Input logic level - high | 2V |
| Max propagation delay @ v, max CL | 7.9ns @ 5V, 50pF |
