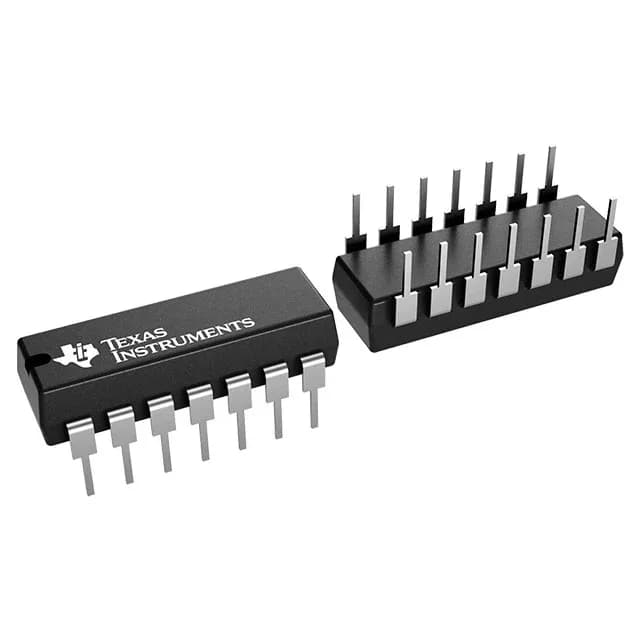

SN74AC14N Texas Instruments Inverter Schmitt Trigger

MPNSN74AC14N
End of Life

Texas Instruments 74AC series, SN74AC14N, Inverter with Schmitt Trigger, 6 Circuits, 6 Inputs, 24mA output, 2V ~ 6V supply, Through Hole 14-DIP (0.300", 7.62mm), -40°C ~ 85°C.

$0.63Ref. price · indicative, final on quote
Packaging14-DIP (0.300", 7.62mm)
RoHSROHS3 Compliant
Series74AC
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

SN74AC14N specifications
ParameterValue
Series74AC
Logic typeInverter
MountingThrough Hole
Supply voltage2V ~ 6V
Current - quiescent2 µA
Current - output high, low24mA, 24mA
I/O channels6
Operating temperature-40°C ~ 85°C
PackageTube
FeaturesSchmitt Trigger
Case14-DIP (0.300\", 7.62mm)
Number of circuits6
Input logic level - low0.5V ~ 1.1V
Input logic level - high2.2V ~ 3.9V
Max propagation delay @ v, max CL10ns @ 5V, 50pF

Product details

Six Schmitt-trigger inverters in a 14-pin DIP

The Texas Instruments SN74AC14N packs six independent inverter gates, each with Schmitt-trigger input hysteresis, into a through-hole 14-pin DIP. It runs on a 2V to 6V supply rail and delivers 24mA sink and source per output. The 74AC family is faster than the older 74HC series — propagation delay is 10ns at 5V with a 50pF load, which gives you more timing margin on a legacy bus that's being pushed harder.

Through-hole DIP — still the right call for repair and prototyping

The 14-pin DIP (0.300" body width) is a socket-friendly footprint. If you're reworking a legacy control board or breadboarding a circuit, this package saves you from hot-air rework. The 24mA output drive is enough to light an LED directly or drive a few TTL loads without a buffer. Mounting is through-hole only — no SMT variant of this exact order code.

If you're qualifying a BOM for a five-year production run, this part isn't going to vanish mid-cycle.

Frequently asked questions

What compliance documentation does the SN74AC14N carry?

The SN74AC14N is ROHS3 compliant. No UL or IEC certification is listed in the available documentation.
