10:1 serializer for high-speed backplane and camera links
The Texas Instruments SCAN921025HSM/NOPB is a 10-input serializer that packs ten parallel LVCMOS or LVTTL channels into a single LVDS serial stream at up to 800 Mbps. This is the part for shrinking a wide parallel bus across a backplane, a flat-panel display link, or a camera module interface where the cable count and connector size are the bottleneck.
Package and board-fit for a 49-ball BGA

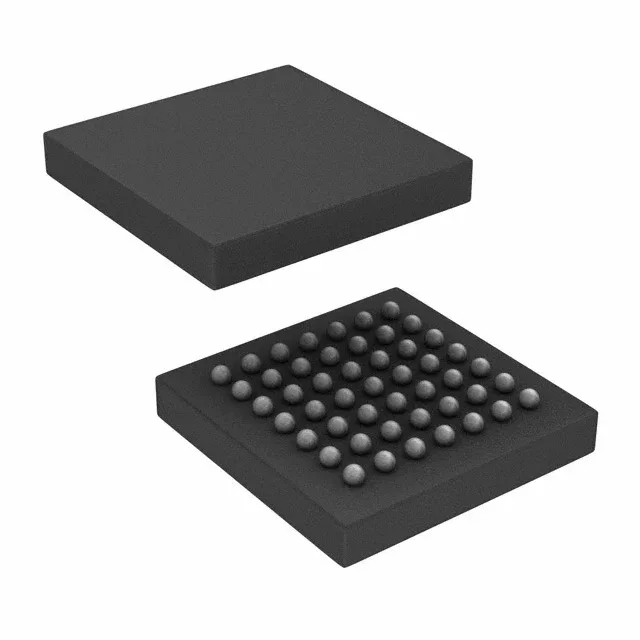

Housed in a 49-LFBGA (7x7 mm body, 0.80 mm ball pitch), the SCAN921025HSM/NOPB requires a 4-layer PCB minimum for signal fan-out — the inner layers carry the LVDS pair and the 3.0–3.6 V supply plane. The part ships in a Tray — not tape-and-reel — so factor this into the pick-and-place setup if the line is configured for reel-fed only. The tray quantity is typically 260 pieces per tray for this body size, though the exact count varies by TI lot.
