Audio signal processor with I2S for digital audio systems
The Texas Instruments PCM2706PJT is an audio signal processor designed for digital audio systems, providing an I2S interface for connecting to codecs, DACs, or digital amplifiers. It operates from a 3V to 3.6V supply and is rated over the -40°C to 125°C temperature range, making it suitable for both industrial and automotive audio applications where the environment is harsh. The part comes in a 32-TQFP (7x7 mm) surface-mount package and supports two audio channels.
Supply voltage and temperature grade — fit for the BOM
With a 3V to 3.6V supply range, this part can run directly from a 3.3V rail common in mixed-signal designs, avoiding the need for an extra regulator. The -40°C to 125°C operating temperature range covers the full industrial and automotive cabin-grade envelope, so it can handle the thermal swings in a motor drive enclosure or a vehicle infotainment head unit without derating concerns.
Package and mounting — layout checklist

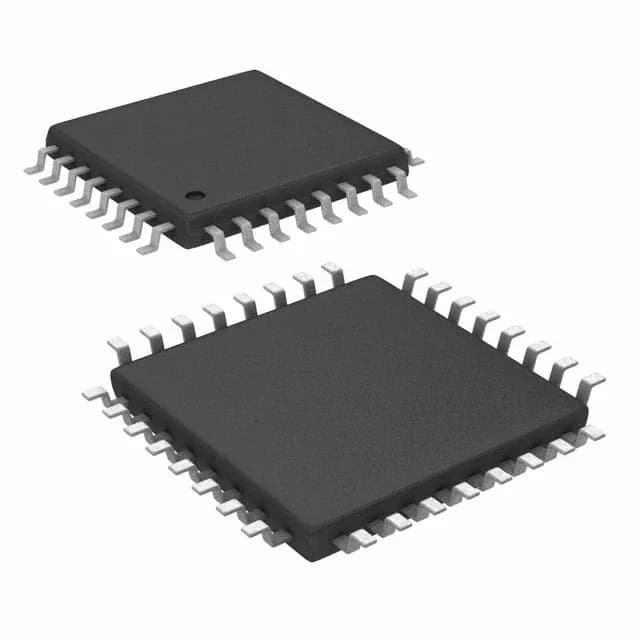

The 32-TQFP (7x7 mm) package has a 0.8 mm pitch, which is straightforward for standard PCB assembly processes. The surface-mount footprint is compatible with reflow soldering; no special thermal management is required for this device as the power dissipation is modest. The tray shipping medium is typical for this package size and volume tier.
Lifecycle and sourcing — active, no LTB risk
For BOM planning, this part carries no imminent obsolescence risk, and it can be sourced through independent distribution channels.
