Texas Instruments OPA2376AIYZDR, dual precision operational amplifier, 5.5 MHz gain bandwidth, 2V/µs slew rate, rail-to-rail output, 2.2 V to 5.5 V supply, DSBGA-8 package, -40°C to 125°C.
| Parameter | Value |
|---|---|
| Output type | Single Ended, Rail-to-Rail |
| Mounting | Surface Mount |
| Amplifier type | General Purpose |
| Voltage - input offset | 5 µV |
| Voltage - supply span | 5.5 V |
| Current - supply | 760µA (x2 Channels) |
| Current - input bias | 0.2 pA |
| Current - output (Channel) | 50 mA |
| Operating temperature | -40°C ~ 125°C |
| Gain bandwidth product | 5.5 MHz |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Slew rate | 2V/µs |
| Case | 8-XFBGA, DSBGA |
| Number of circuits | 2 |
The OPA2376AIYZDR: Rail-to-rail output swing at 50 mA per channel and a 5.5 MHz gain-bandwidth product make it suitable for driving SAR ADC inputs or precision filter stages in industrial and automotive signal chains.

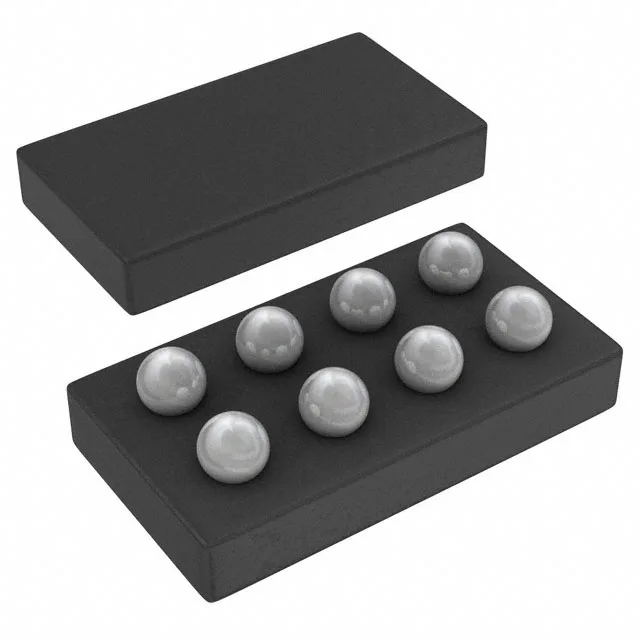

Housed in an 8-ball DSBGA (2.15 mm × 1.11 mm) — a wafer-level chip-scale package that saves board area but demands careful PCB fan-out and a controlled reflow profile.
Determines if it fits the PCB layout, as the DSBGA package requires specific soldering.
Critical for lifecycle planning; if obsolete, need to find a replacement.
Essential for BOM costing and ensuring supply chain continuity.
Prompts to direct purchase from authorized distributors.
Needed when part is not available or for second sourcing.
Ensures correct connection in the circuit, especially for a small package.
