Texas Instruments MSP430FR5964IZVWR — Microcontrollers & Processors (MCU / MPU / DSP)
Texas Instruments

TI MSP430FR5964IZVWR 16-bit MCU, 256KB FRAM, 16MHz, 87-NFBGA

MPNMSP430FR5964IZVWR
Active

Texas Instruments MSP430FR5964IZVWR, MSP430™ FRAM series 16-bit MCU, CPUXV2 core, 16MHz, 256KB FRAM, 8K x 8 RAM, 68 I/O, I²C/IrDA/SPI/UART, 20x12b ADC, 1.8V-3.6V, -40°C~85°C, 87-NFBGA (6x6 mm).

$7.8000Ref. price · indicative, final on quote
MSP430FR5964IZVWR datasheet
StockContact for availability
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

MSP430FR5964IZVWR Technical Specifications
ParameterValue
SeriesMSP430™ FRAM
Mounting typeSurface Mount
Oscillator typeExternal, Internal
Program memory typeFRAM
Voltage - supply (Vcc (Vdd))1.8V ~ 3.6V
Operating temperature-40°C~85°C(TA)
Speed16MHz
PackageTape & Reel (TR); Cut Tape (CT)
RAM size8K x 8
Core size16-Bit
PeripheralsBrown-out Detect/Reset, DMA, POR, PWM, WDT
ConnectivityI²C, IrDA, SPI, UART/USART
Number of i (O)68
Core processorMSP430 CPUXV2
Case87-VFBGA
Data convertersA/D 20x12b
Program memory size256KB (256K x 8)

Product details

Industrial temperature range and deployment environments

Rated for -40°C to 85°C, this MCU fits industrial control, outdoor telecom, and engine-bay modules where the ambient temperature swings beyond commercial limits. The 1.8 V to 3.6 V supply range lets it run directly from a 3.6 V lithium cell or a 1.8 V regulated rail, simplifying the power tree in battery-backed designs.

256 KB FRAM — what it means for the BOM

The 256 KB FRAM replaces both Flash program storage and external EEPROM for parameter storage. FRAM writes at bus speed with no erase cycle, so the MCU can log sensor data or update calibration tables in real time without wearing out the memory. This eliminates a separate serial EEPROM from the BOM and saves board space in compact designs.

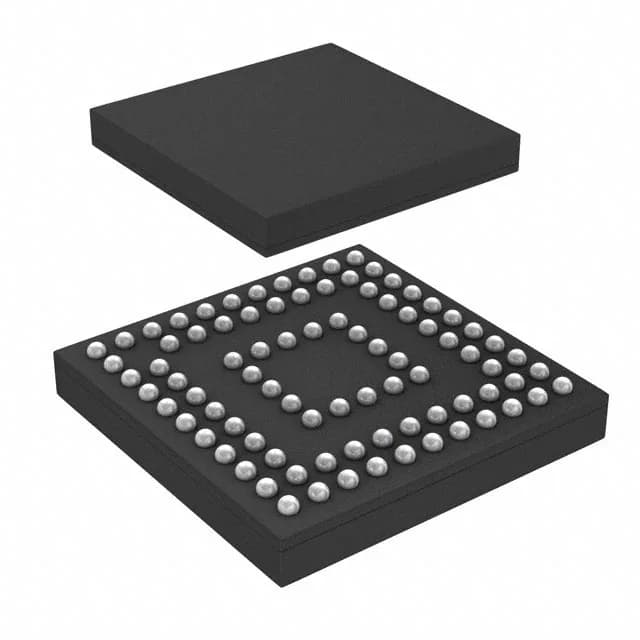

87-NFBGA package — assembly considerations

The 87-ball NFBGA measures 6 mm x 6 mm. This package requires automated assembly and reflow profiling.

Frequently asked questions

What is the FRAM size of MSP430FR5964IZVWR?

The program memory is 256 KB (256K x 8) of FRAM, which is non-volatile and supports fast writes without erase cycles.

What is the operating supply voltage of MSP430FR5964IZVWR?

The supply voltage range is 1.8 V to 3.6 V, covering single lithium-cell and standard 3.3 V rails.
