MCT8316Z0TQRGFRQ1

Texas Instruments

Texas Instruments MCT8316Z0TQRGFRQ1, Automotive BLDC Motor Driver, Fully Integrated Control and Power Stage, 3 Half-Bridges, NMOS, 4.5V-35V Supply, 8A Output, Hardware Interface, 40-VQFN (7x5), -40°C to 125°C.

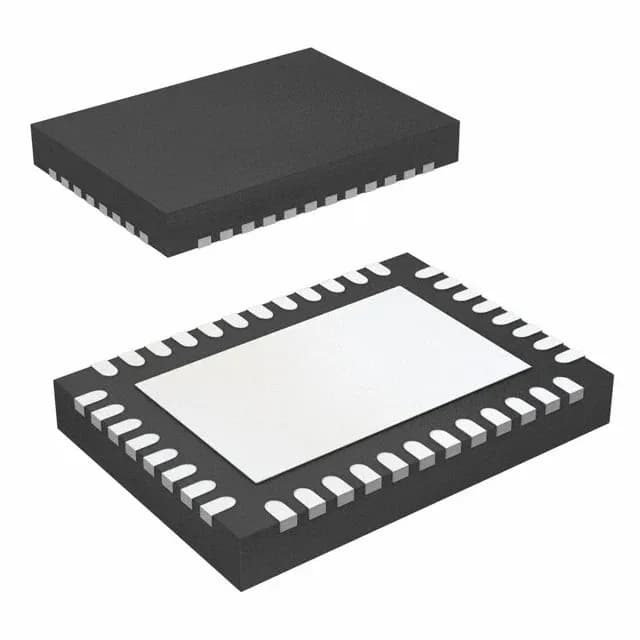

Texas Instruments MCT8316Z0TQRGFRQ1
Download datasheet (PDF)
[IN STOCK] In Stock: 1 pcs
$7.55/ pc

Volume pricing

Buy Now

MOQ 1 · Tape & Reel (TR); Cut Tape (CT) · RoHS · EIA-481 · DAP/DDP · T/T

Technical specifications

MCT8316Z0TQRGFRQ1 specifications
Parameter / AttributeSpecification / Value
MountingSurface Mount
Motor type - AC, DCBrushless DC (BLDC)
Motor type - stepperMultiphase
Voltage - load4.5V ~ 35V
Supply voltage4.5V ~ 35V
Output current8A
InterfaceHardware
Operating temperature-40°C ~ 125°C (TA)
GradeAutomotive
PackageTape & Reel (TR); Cut Tape (CT)
FunctionDriver - Fully Integrated, Control and Power Stage
TechnologyNMOS
QualificationAEC-Q100
Case40-VFQFN Exposed Pad
Output configurationHalf Bridge (3)

Technical details

For a BOM freeze, this is the tier that avoids a qualification re-run if the project targets a passenger-vehicle or commercial-vehicle program.

That means no last-time-buy window to manage, no risk of a sudden EOL notice interrupting a multi-year production run. For a sourcing desk qualifying a new automotive platform, this removes the supply-risk variable from the motor-drive line item.

Hardware interface — no comms overhead

The driver uses a hardware interface (PWM and direction pins) rather than a serial bus. That means the MCU does not need SPI or I²C firmware to configure the driver — the motor starts when the PWM signal appears. The trade-off is that the driver's protection thresholds and dead-time are fixed; there is no register to tweak for a different motor inductance. For a fixed-motor design (one pump, one blower), this is a BOM simplification. For a multi-motor platform, the fixed-configuration may be a constraint.
