Texas Instruments LP87564TRNFRQ1 — Discrete Semiconductors
Texas Instruments

LP87564TRNFRQ1 Texas Instruments Buck Converter, 16A

MPNLP87564TRNFRQ1
End of Life

Texas Instruments Automotive, AEC-Q100 series, Buck step-down converter, LP87564TRNFRQ1, quad 16A programmable output, 2.8-5.5V input, 2MHz switching, 26-VQFN-HR package.

$7.55Ref. price · indicative, final on quote
LP87564TRNFRQ1 datasheet
Packaging26-PowerVFQFN
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

LP87564TRNFRQ1 Technical Specifications
ParameterValue
SeriesAutomotive, AEC-Q100
Output typeProgrammable
Mounting typeSurface Mount, Wettable Flank
Voltage - input5.5V
Voltage - output3.36V
Voltage - output (Min (Fixed))0.6V
Current - output16A
Frequency2MHz
Number of outputs4
Operating temperature-40°C ~ 125°C (TA)
PackageTape & Reel (TR); Cut Tape (CT)
FunctionStep-Down
TopologyBuck
Case26-PowerVFQFN
Output configurationPositive
Synchronous rectifierYes

Product details

Automotive-grade quad buck with 16 A per rail

The LP87564TRNFRQ1 is a four-output step-down (buck) converter from Texas Instruments, rated for 16 A per channel across a 2.8 V to 5.5 V input range. It belongs to the Automotive, AEC-Q100 series, qualified for board-level reliability and temperature stress per the automotive IC standard. Each output is independently programmable from 0.6 V to 3.36 V, and the converter operates at a fixed 2 MHz switching frequency with synchronous rectification, keeping the external inductor and capacitor values small.

Qualified for underhood ambient temperatures

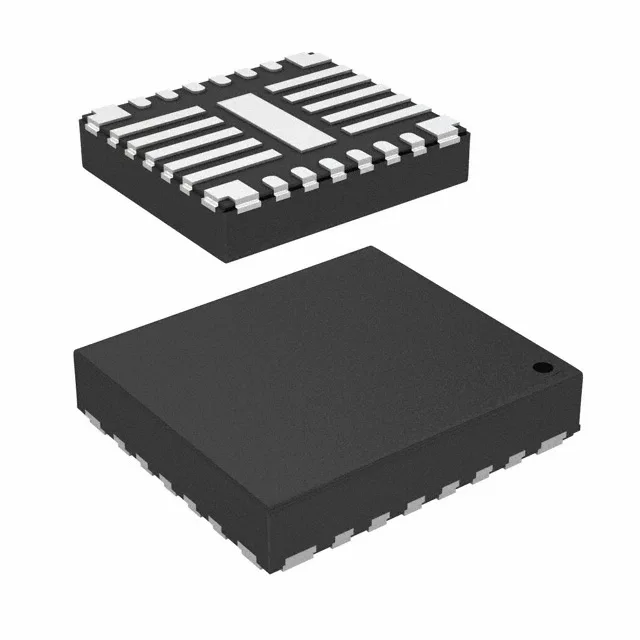

Packaged in a 26-PowerVFQFN with wettable flank terminals (supplier device package 26-VQFN-HR, 4.5 mm × 4 mm), the LP87564TRNFRQ1 supports automated optical inspection (AOI) of the solder joints — a requirement for high-reliability automotive assembly lines.

Sourcing and procurement posture

Texas Instruments provides standard compliance documentation (RoHS, REACH) with the part.

Frequently asked questions

Is the LP87564TRNFRQ1 AEC-Q100 qualified?

Yes, the LP87564TRNFRQ1 is part of the Automotive, AEC-Q100 series, meaning it has been qualified for automotive-grade temperature, reliability, and PPAP documentation per the AEC-Q100 standard.
