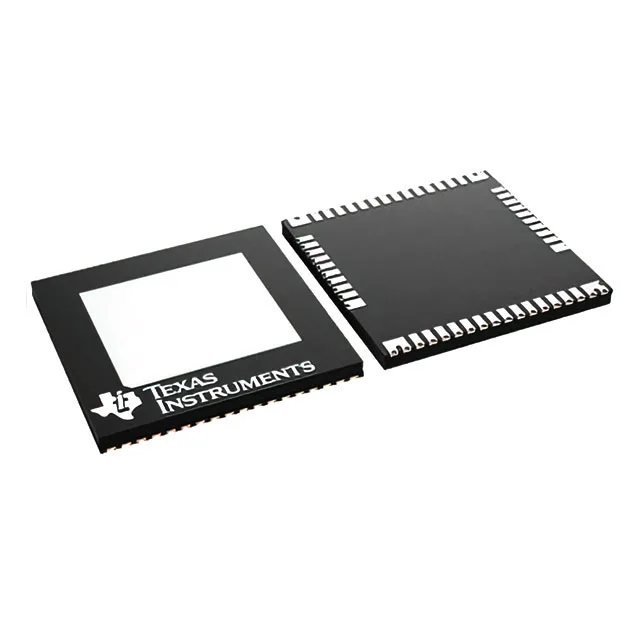

Texas Instruments LMG3522R030RQSR
MPNLMG3522R030RQSR
End of Life
IC LOW SIDE 38A 52VQFN
$31.42188Price · pay online now
Packaging52-VQFN Exposed Pad
RoHSROHS3 Compliant
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Load type | Inductive, Capacitive, Resistive |
| Mounting | Surface Mount |
| Voltage - load | 650V |
| Supply voltage | 7.5V ~ 18V |
| Current - output (Channel) | 38A |
| Interface | PWM |
| Operating temperature | -40°C ~ 125°C (TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Technology | NMOS |
| Applications | DC Motors, General Purpose |
| Rds on | 26mOhm |
| Case | 52-VQFN Exposed Pad |
| Fault protection | Current Limiting (Adjustable), Over Temperature, Short Circuit, UVLO |
| Output configuration | Low Side |
