LMC8101TPX/NOPB General Purpose Op-Amp, 1.3 MHz

MPNLMC8101TPX/NOPB
End of Life

Texas Instruments LMC8101TPX/NOPB, general-purpose op-amp, single circuit, 1.3 MHz gain bandwidth, 1.2 V/µs slew rate, rail-to-rail output, 8-DSBGA package.

$1.67Ref. price · indicative, final on quote
LMC8101TPX/NOPB datasheet
Packaging8-UFBGA
StockContact for availability
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

LMC8101TPX/NOPB Technical Specifications
ParameterValue
Output typeRail-to-Rail
Mounting typeSurface Mount
Amplifier typeGeneral Purpose
Voltage - input offset700 µV
Voltage - supply span2.7 V
Current - supply1.1mA
Current - input bias1 pA
Current - output (Channel)90 mA
Operating temperature-40°C ~ 85°C
Gain bandwidth product1.3 MHz
PackageTape & Reel (TR); Cut Tape (CT)
Slew rate1.2V/µs
Case8-UFBGA
Number of circuits1

Product details

What this part is and where it fits

The Texas Instruments LMC8101TPX/NOPB is a single-channel general-purpose operational amplifier with a gain-bandwidth product of 1.3 MHz and a slew rate of 1.2 V/µs. It operates from a single supply spanning 2.7 V to 10 V, drawing 1.1 mA quiescent current. The rail-to-rail output stage and 90 mA output drive per channel make it suited for signal conditioning in battery-powered instruments, sensor interfaces, and audio line drivers. The industrial temperature range of -40°C to 85°C covers outdoor telecom and factory-floor enclosures.

Package and rework reality — 8-DSBGA

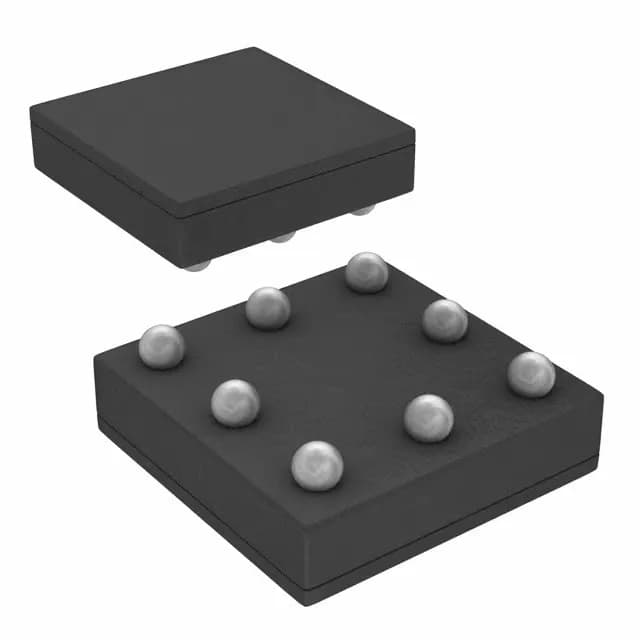

This part comes in an 8-UFBGA package (supplier package designation 8-DSBGA). It requires reflow soldering and X-ray inspection.

What the key ratings mean for your BOM

The 1.3 MHz gain-bandwidth product and 1.2 V/µs slew rate suit audio and low-speed ADC drive. Supply current is 1.1 mA at 2.7 V minimum supply.

Lifecycle and sourcing posture

The LMC8101TPX/NOPB is an active product from Texas Instruments, ROHS3 compliant. It is sourced through independent distribution and quoted to order against an RFQ.

Frequently asked questions

Is LMC8101TPX/NOPB still active and available?

Yes, the LMC8101TPX/NOPB is an active product from Texas Instruments with no end-of-life notice. It is available to order through independent distribution; pricing and lead time are confirmed at quote time.

What is the equivalent or replacement for LMC8101TPX/NOPB?

There is no direct pin-compatible replacement from TI in the same 8-DSBGA package. The TLV9351IDCKR is a functionally similar single-channel op-amp with higher bandwidth (3.5 MHz) and slew rate (20 V/µs), but it comes in an SC-70 package and has lower output current (60 mA). Verify the footprint and drive requirements before substituting.

Is LMC8101TPX/NOPB suitable for battery-powered applications?

Yes. The 2.7 V minimum supply and 1.1 mA quiescent current make it a reasonable fit for 3.3 V battery-operated designs. The rail-to-rail output maximizes signal swing on a low supply voltage, and the 1 pA input bias current preserves battery life in sensor front-ends.
