LM48312TLE/NOPB

Texas Instruments · Boomer® Series

Texas Instruments Boomer® series Class D mono audio amplifier, LM48312TLE/NOPB, 2.6W output into 4Ω, 2.4V to 5.5V supply, 9-DSBGA package, -40°C to 85°C.

Texas Instruments LM48312TLE/NOPB
Download datasheet (PDF)
[IN STOCK] In Stock: 10 pcs
$4.61/ pc

Volume pricing

Buy Now

MOQ 1 · Tape & Reel (TR); Cut Tape (CT) · RoHS · EIA-481 · DAP/DDP · T/T

Technical specifications

LM48312TLE/NOPB specifications
Parameter / AttributeSpecification / Value
TypeClass D
SeriesBoomer®
Output type1-Channel (Mono)
MountingSurface Mount
Supply voltage2.4V ~ 5.5V
Max output power x channels @ load2.6W x 1 @ 4Ohm
Operating temperature-40°C ~ 85°C (TA)
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesDepop, Differential Inputs, E²S, Short-Circuit Protection, Shutdown

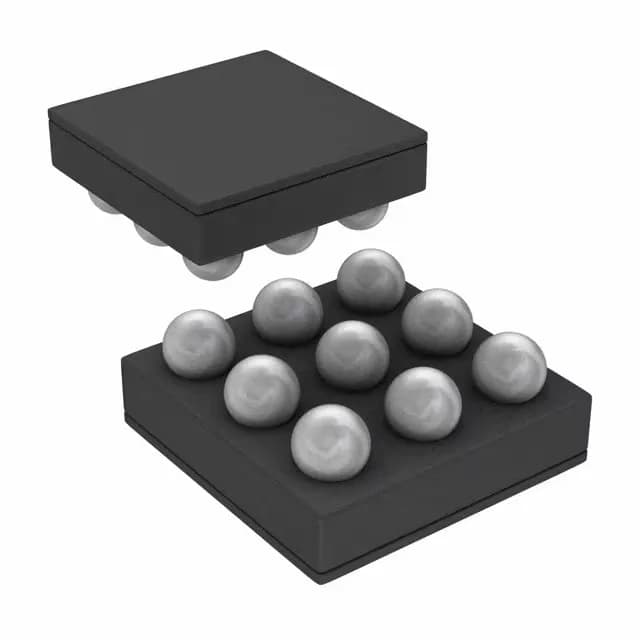

Case9-WFBGA, DSBGA

Technical details

The Depop feature suppresses turn-on/turn-off clicks, and the E²S (Enhanced Edge Shutdown) reduces pop noise during shutdown transitions. Differential inputs reject common-mode noise from the audio source or ground loops — useful when the amplifier sits on a separate board from the codec or DAC. Short-circuit protection and thermal shutdown are built in. The 9-DSBGA package requires careful PCB layout.

If you're cross-shopping this part for a BOM freeze or second-source qualification, note that the 9-DSBGA footprint is unique to this package variant. There is no pin-compatible alternative in a larger package — the trade-off is board space vs. ease of rework. For volume builds, confirm with TI that the 9-DSBGA is still preferred for your assembly house's capability.
