Texas Instruments LM3671TLX-ADJ/NOPB — Discrete Semiconductors
Texas Instruments

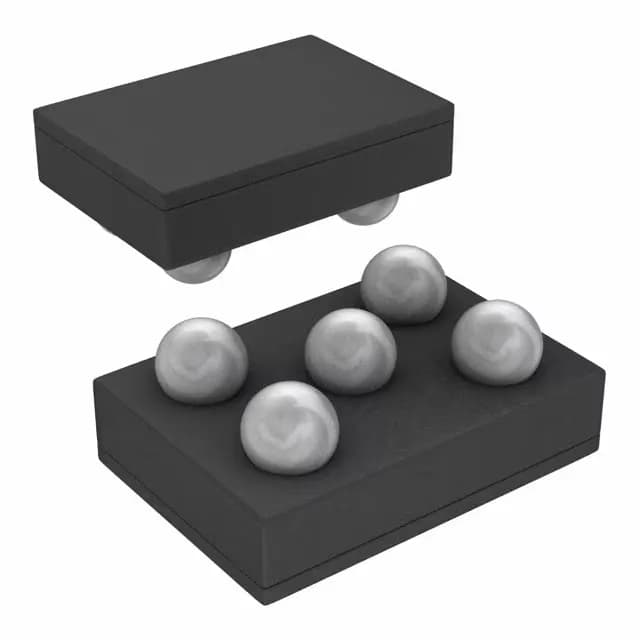

LM3671TLX-ADJ/NOPB Buck Converter, 600 mA, 2 MHz, DSBGA-5

MPNLM3671TLX-ADJ/NOPB
End of Life

Texas Instruments LM3671TLX-ADJ/NOPB, Step-Down Buck Regulator, Adjustable Output, 600 mA, 2 MHz Switching, 5-WFBGA/DSBGA, -40 to 85 °C.

$1.62Ref. price · indicative, final on quote
LM3671TLX-ADJ/NOPB datasheet
Packaging5-WFBGA, DSBGA
StockContact for availability
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

LM3671TLX-ADJ/NOPB Technical Specifications
ParameterValue
Output typeAdjustable
Mounting typeSurface Mount
Voltage - input5.5V
Voltage - output3.3V
Voltage - output (Min (Fixed))1.1V
Current - output600mA
Frequency2MHz
Number of outputs1
Operating temperature-40°C ~ 85°C (TA)
PackageTape & Reel (TR); Cut Tape (CT)
FunctionStep-Down
TopologyBuck
Case5-WFBGA, DSBGA
Output configurationPositive
Synchronous rectifierYes

Product details

2 MHz buck in a 1.4 mm² footprint

The Texas Instruments LM3671TLX-ADJ/NOPB is a synchronous step-down (buck) regulator delivering up to 600 mA from a 2.7 V to 5.5 V input rail. Its 2 MHz switching frequency lets you use a small inductor and ceramic output capacitor, shrinking the total solution to fit a 5-bump DSBGA package measuring 1.41 mm × 1.08 mm. The adjustable output ranges from 1.1 V up to 3.3 V, covering common core and I/O rails for portable and battery-powered gear. Synchronous rectification keeps efficiency above 85% across most of the load range, which matters when every milliamp of battery draw counts.

Industrial temperature range and active lifecycle

Rated for -40°C to 85°C ambient, the LM3671TLX-ADJ/NOPB fits outdoor telecom, factory sensors, and enclosure-mounted electronics that see temperature swings but not under-hood extremes.

Frequently asked questions

What is the closest functional equivalent to the LM3671TLX-ADJ/NOPB?

There is no pin-compatible second source listed. For a higher-current (3 A) automotive-grade buck with similar 2.1 MHz switching, the LMR33630APCQRNXRQ1 is a functional alternative but comes in a different package and requires a larger PCB footprint.
