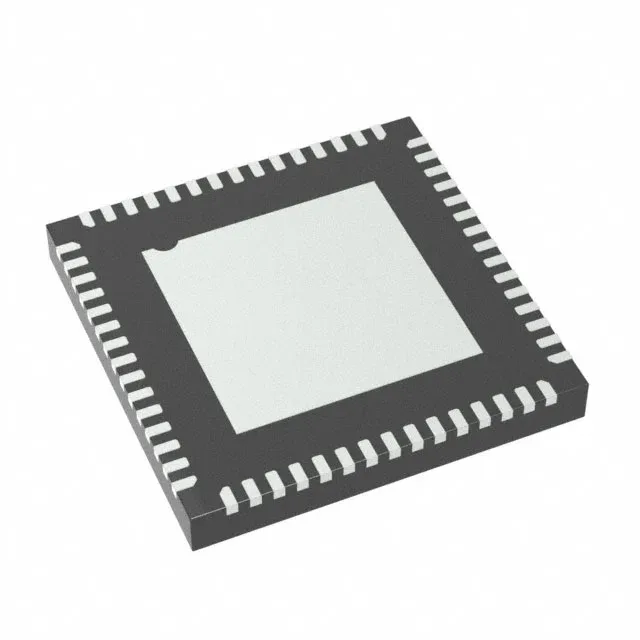

Texas Instruments Automotive, AEC-Q100 DS90UR906QSQE/NOPB deserializer, 1.82 Gbps, FPD-Link II LVDS input, LVCMOS output, 60-WQFN exposed pad.
| Parameter | Value |
|---|---|
| Series | Automotive, AEC-Q100 |
| Input type | FPD-Link II, LVDS |
| Output type | LVCMOS |
| Mounting | Surface Mount |
| Supply voltage | 1.71V ~ 1.89V, 3V ~ 3.6V |
| I/O channels | 24 |
| Operating temperature | -40°C ~ 105°C (TA) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Function | Deserializer |
| Data rate | 1.82Gbps |
| Case | 60-WFQFN Exposed Pad |
The Texas Instruments DS90UR906QSQE/NOPB is a deserializer that converts a single FPD-Link II LVDS serial stream into 24 parallel LVCMOS outputs at a data rate of 1.82 Gbps.
The part is offered in Tape & Reel (TR) and Cut Tape (CT) packaging options, which affects both the pick-and-place feeder setup and the minimum order quantity for prototype vs production runs.
No, the SN65LV1023ARHBT is a serializer (10 LVTTL inputs to 1 LVDS output, 660 Mbps), not a deserializer. The DS90UR906QSQE/NOPB performs the opposite function — it takes one FPD-Link II LVDS serial stream and outputs 24 parallel LVCMOS signals. They are not drop-in replacements and serve different ends of the serial link.
The DS90UR906QSQE/NOPB is ROHS3 compliant. Standard TI documentation includes the datasheet, application notes for FPD-Link II deserializer layout, and AEC-Q100 qualification reports available through the TI website or authorized distribution channels.
