Signal-processing interface IC for board-level conditioning
The DS32EV400SQ/NOPB: It sits between the digital processor and the analog front-end, handling the configuration bus for equalizers, filters, or amplifiers that adjust signal integrity before the ADC.
Package and board-fit constraints

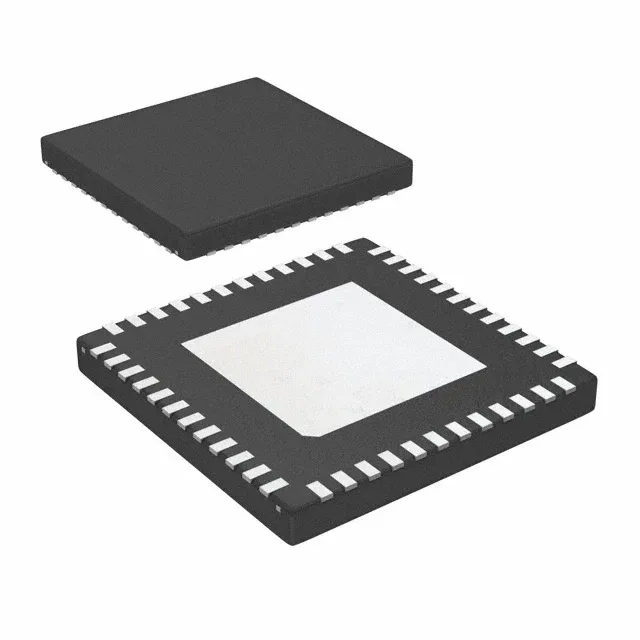

Housed in a 48-lead WFQFN with an exposed pad (7x7 mm body per the supplier device package designation 48-WQFN), the DS32EV400SQ/NOPB requires a thermal-land pattern on the PCB to dissipate heat from the die. Surface-mount assembly follows standard QFN profiles: a 0.18 mm stencil aperture for the exposed pad and 0.25 mm for the peripheral lands.
Supply-voltage flexibility and decoupling
The choice affects the output swing and noise margin on the serial bus; 3.3 V operation gives a wider logic-high threshold at the expense of slightly higher dynamic power. The exposed paddle acts as the ground return — connect it directly to the ground plane with multiple vias to keep the inductance below 1 nH.
Lifecycle and compliance status
The part is ROHS3 Compliant, meeting the latest EU restriction-of-hazardous-substances directive without exemptions.
