CSD87502Q2T - Texas Instruments
MPNCSD87502Q2T
End of Life
MOSFET 2N-CH 30V 5A 6WSON
$1.25Ref. price · indicative, final on quote

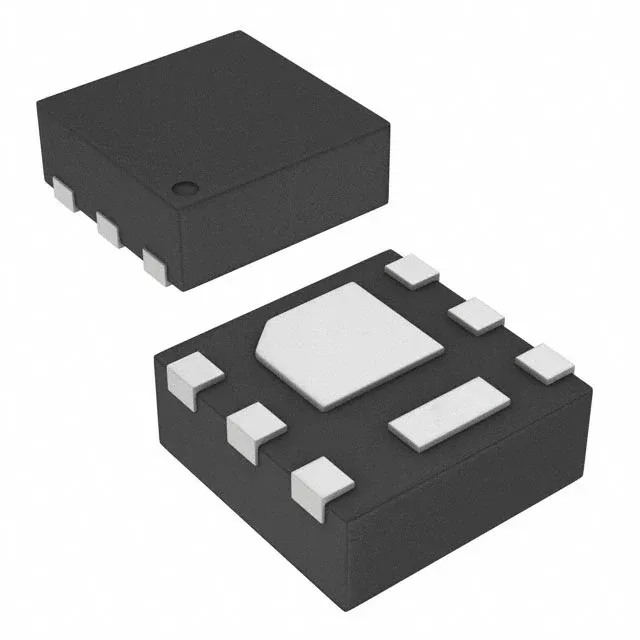

Packaging6-WDFN Exposed Pad
RoHSROHS3 Compliant
SeriesNexFET™
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | NexFET™ |
| FET type | 2 N-Channel (Dual) |
| Mounting | Surface Mount |
| Drain to source voltage | 30V |
| Current - continuous drain (Id) @ 25°C | 5A |
| Power - max | 2.3W |
| Operating temperature | -55°C ~ 150°C (TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| FET feature | Logic Level Gate, 5V Drive |
| Case | 6-WDFN Exposed Pad |
| Vgs(th) (Max) @ id | 2V @ 250µA |
| Rds on (Max) @ id, vgs | 32.4mOhm @ 4A, 10V |
| Gate charge (Qg) (Max) @ vgs | 6nC @ 10V |
| Input capacitance (Ciss) (Max) @ vds | 353pF @ 15V |
Frequently asked questions
Where can I buy CSD87502Q2T?
Directs buyers to authorized distributors and ensures genuine parts.
What is the price of CSD87502Q2T?
Critical for BOM costing and budget planning.
What is the equivalent part for CSD87502Q2T?
Helps find alternatives if the original is out of stock or obsolete.
Is CSD87502Q2T obsolete?
Determines long-term availability and need for a replacement.
What is the datasheet for CSD87502Q2T?
Provides essential electrical characteristics and pinout for design validation.
What is the difference between CSD87502Q2T and CSD87350Q2T?
Enables engineers to select the right part for their application with confidence.
