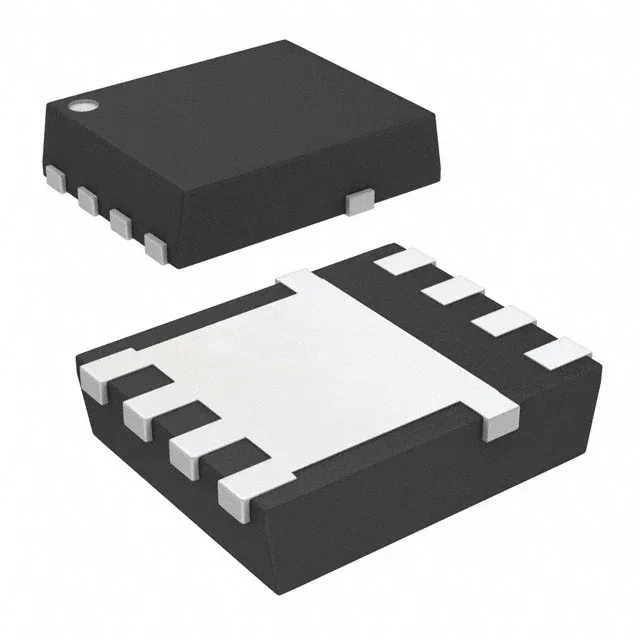

CSD17302Q5A - Texas Instruments
MPNCSD17302Q5A
End of Life
MOSFET N-CH 30V 16A/87A 8VSON
$0.98Ref. price · indicative, final on quote
Packaging8-PowerTDFN
RoHSROHS3 Compliant
SeriesNexFET™
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | NexFET™ |
| FET type | N-Channel |
| Mounting | Surface Mount |
| Drain to source voltage | 30 V |
| Drive voltage (Max rds on, min rds on) | 3V, 8V |
| Current - continuous drain (Id) @ 25°C | 16A (Ta), 87A (Tc) |
| Power dissipation | 3W (Ta) |
| Operating temperature | -55°C ~ 150°C (TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Vgs | +10V, -8V |
| Technology | MOSFET (Metal Oxide) |
| Case | 8-PowerTDFN |
| Vgs(th) (Max) @ id | 1.7V @ 250µA |
| Rds on (Max) @ id, vgs | 7.9mOhm @ 14A, 8V |
| Gate charge (Qg) (Max) @ vgs | 7 nC @ 4.5 V |
| Input capacitance (Ciss) (Max) @ vds | 950 pF @ 15 V |
