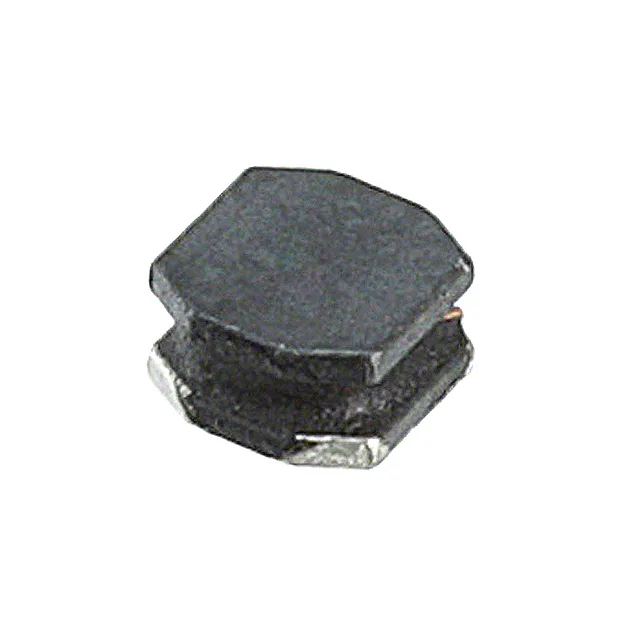

TDK Corporation VLS2012ET-R47N
MPNVLS2012ET-R47N
NRND
$0.3200Ref. price · indicative, final on quote
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Wirewound |
| Series | VLS |
| Mounting | Surface Mount |
| Current rating | 2 A |
| Current - saturation | 2.05A |
| Inductance frequency - test | 1 MHz |
| Operating temperature | -40°C ~ 105°C |
| Size (Dimension) | 0.079\" L x 0.079\" W (2.00mm x 2.00mm) |
| Height - seated | 0.047\" (1.20mm) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Shielding | Shielded |
| Tolerance | ±30% |
| Inductance | 470 nH |
| Case | Nonstandard |
| DC resistance | 59mOhm Max |
