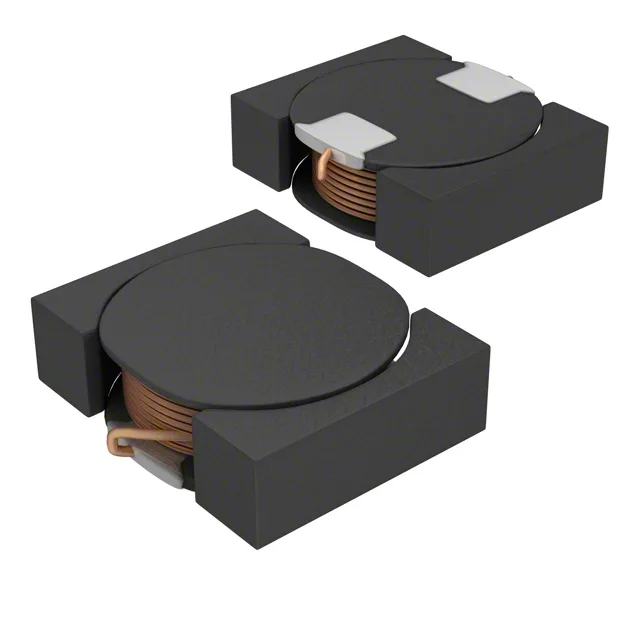

TDK Corporation VLF504015MT-3R3M
MPNVLF504015MT-3R3M
Obsolete
$1.7200Ref. price · indicative, final on quote
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Drum Core, Wirewound |
| Series | VLF-M |
| Mounting | Surface Mount |
| Current rating | 2.51 A |
| Current - saturation | 2.33A |
| Inductance frequency - test | 1 MHz |
| Operating temperature | -40°C ~ 105°C |
| Material - core | Ferrite |
| Size (Dimension) | 0.197\" L x 0.157\" W (5.00mm x 4.00mm) |
| Height - seated | 0.059\" (1.50mm) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Shielding | Shielded |
| Tolerance | ±20% |
| Inductance | 3.3 µH |
| Case | Nonstandard |
| DC resistance | 63mOhm Max |
