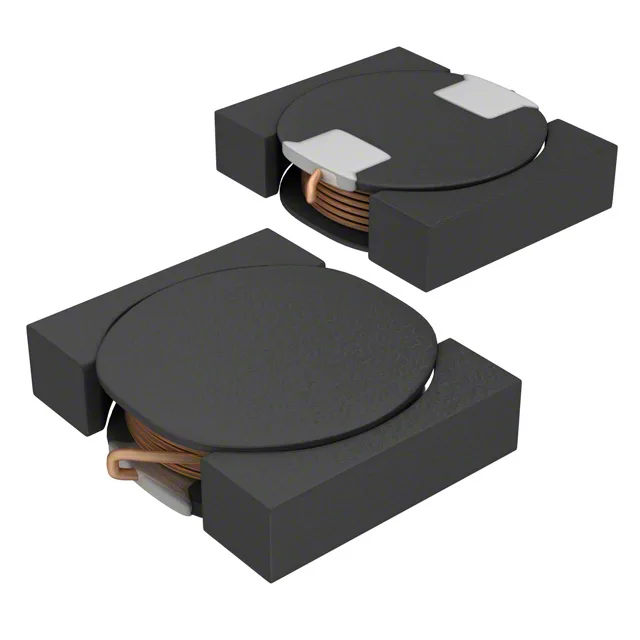

TDK Corporation VLF504012MT-4R7M
MPNVLF504012MT-4R7M
Obsolete
$1.5900Ref. price · indicative, final on quote
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Drum Core, Wirewound |
| Series | VLF-M |
| Mounting | Surface Mount |
| Current rating | 1.83 A |
| Current - saturation | 1.75A |
| Inductance frequency - test | 1 MHz |
| Operating temperature | -40°C ~ 105°C |
| Material - core | Ferrite |
| Size (Dimension) | 0.197\" L x 0.157\" W (5.00mm x 4.00mm) |
| Height - seated | 0.047\" (1.20mm) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Shielding | Shielded |
| Tolerance | ±20% |
| Inductance | 4.7 µH |
| Case | Nonstandard |
| DC resistance | 120mOhm Max |
