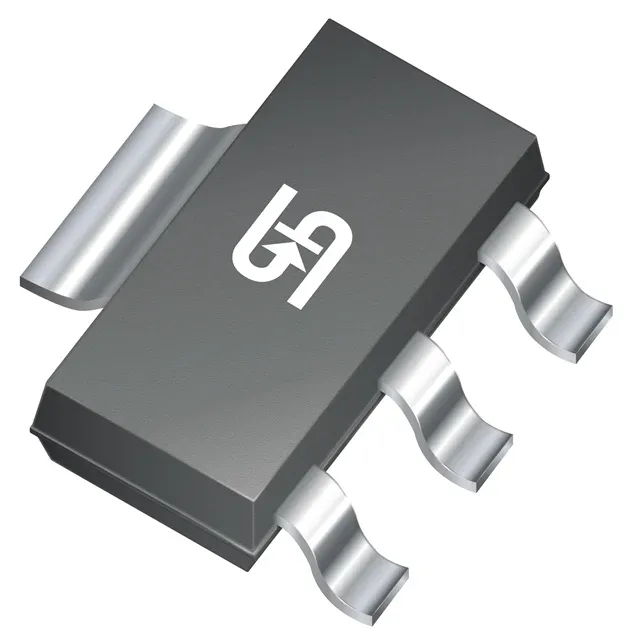

TS2937CW33 RPG
Taiwan Semiconductor Corporation
IC REG LINEAR 3.3V 500MA SOT223
[IN STOCK] In Stock: 3 pcs
MOQ 1 · Tape & Reel (TR); Cut Tape (CT) · RoHS · EIA-481 · DAP/DDP · T/T
Technical specifications
| Parameter / Attribute | Specification / Value |
|---|---|
| Output type | Fixed |
| Mounting | Surface Mount |
| Voltage - input | 26V |
| Voltage dropout | 0.7V @ 500mA |
| Voltage - output (Min (Fixed)) | 3.3V |
| Output current | 500mA |
| Current - supply | 25 mA |
| Operating temperature | -40°C ~ 125°C (TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Case | TO-261-4, TO-261AA |
| Control features | Current Limit |
| Protection features | Over Voltage, Thermal Shutdown, Transient Voltage |
| Number of regulators | 1 |
| Output configuration | Positive |
TS2937CW33 RPG
[ALLOC] verified
