STMicroelectronics TSB512IST dual op-amp, 6 MHz GBW

MPNTSB512IST
End of Life

STMicroelectronics TSB512IST, General Purpose dual op-amp, 6 MHz GBW, 3 V/µs slew rate, Rail-to-Rail I/O, 2.7 V to 36 V supply, -40°C to 125°C, 8-MiniSO package.

$2.7Ref. price · indicative, final on quote
TSB512IST datasheet
Packaging8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
StockContact for availability
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

TSB512IST Technical Specifications
ParameterValue
Output typeRail-to-Rail
Mounting typeSurface Mount
Amplifier typeGeneral Purpose
Voltage - input offset1.5 mV
Voltage - supply span2.7 V
Current - supply1.8mA (x2 Channels)
Current - output (Channel)50 mA
Operating temperature-40°C ~ 125°C
Gain bandwidth product6 MHz
PackageTape & Reel (TR); Cut Tape (CT)
Slew rate3V/µs
Case8-TSSOP, 8-MSOP (0.118\", 3.00mm Width)
Number of circuits2

Product details

Dual op-amp with 6 MHz GBW and rail-to-rail I/O for industrial sensing

It features rail-to-rail inputs and outputs, allowing maximum signal swing on low supply rails. The device operates from a single or dual supply spanning 2.7 V to 36 V, drawing 1.8 mA per channel.

Supply voltage flexibility and output drive

With a supply span from 2.7 V to 36 V, this op-amp works across 3.3 V, 5 V, and ±15 V systems without needing a separate regulator. The input offset voltage is 1.5 mV, typical for a general-purpose amplifier — adequate for most signal conditioning but not precision instrumentation.

Package and footprint

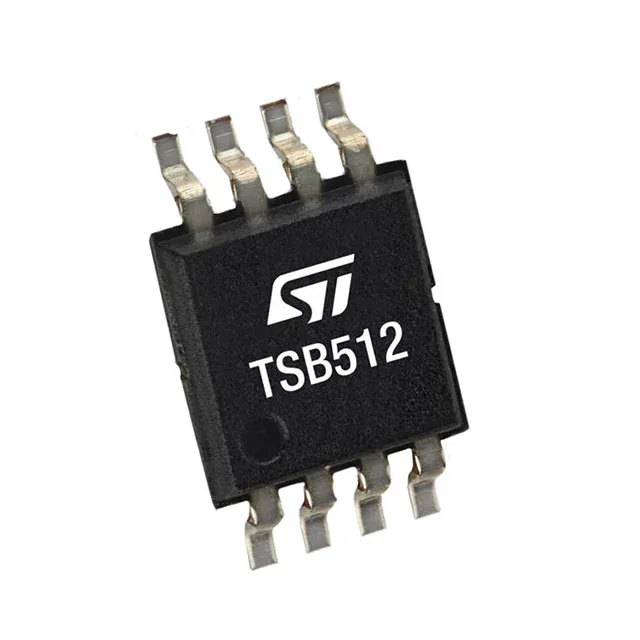

The TSB512IST is supplied in an 8-MiniSO package (also listed as 8-TSSOP / 8-MSOP, 3.00 mm width). The compact footprint suits dense PCB layouts in multi-channel signal chains.

Lifecycle and compliance

It is ROHS3 compliant, meeting current environmental requirements for EU and global markets.

Frequently asked questions

What are the alternatives to TSB512IST?

For a single-channel version, the TSB511ILT offers the same 6 MHz GBW and 3 V/µs slew rate in a similar package. For a higher-speed dual op-amp, the TS462CDT provides 12 MHz GBW and 4 V/µs slew rate but with a narrower -20°C to 70°C temperature range.

Is TSB512IST RoHS compliant?

Yes, the TSB512IST is ROHS3 compliant, meeting the latest EU RoHS directive requirements.
