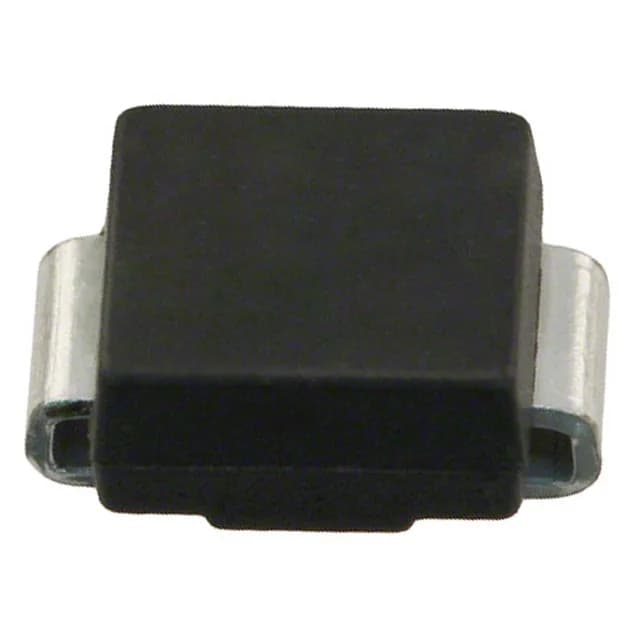

STMicroelectronics STPS2L25U Schottky rectifier, 25 V reverse voltage, 2 A average rectified current, 450 mV forward drop at 2 A, fast recovery < 500 ns, DO-214AA (SMB) package, surface mount.
| Parameter | Value |
|---|---|
| Mounting | Surface Mount |
| Voltage - DC reverse (Vr) | 25 V |
| Voltage - forward (Vf) (Max) @ if | 450 mV @ 2 A |
| Current - reverse leakage @ vr | 90 µA @ 25 V |
| Current - average rectified | 2A |
| Operating temperature - junction | 150°C (Max) |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Technology | Schottky |
| Case | DO-214AA, SMB |
The STPS2L25U: ROHS3 compliant, which covers the latest EU exemption updates — no separate certificate needed for most builds.
The 150 °C max junction temperature gives some headroom, but derate the 2 A if the ambient is above 100 °C.
