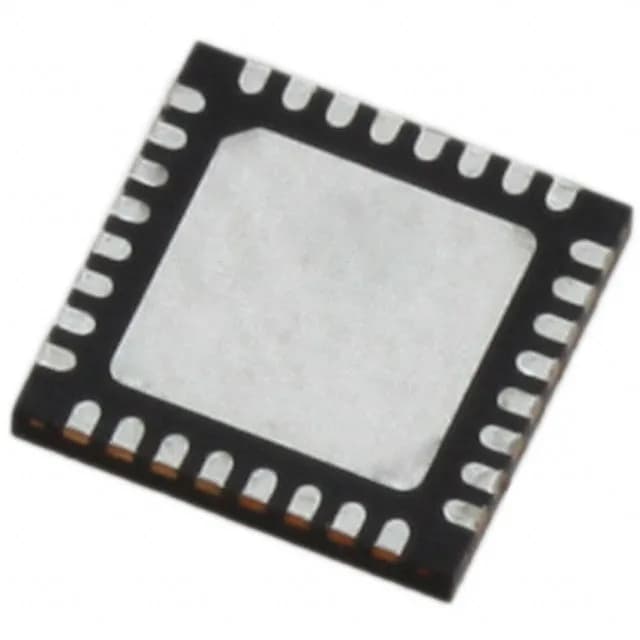

STMicroelectronics STM8L152K4U6 — Microcontrollers & Processors (MCU / MPU / DSP)

STM8L152K4U6 STMicroelectronics 8-bit MCU, 16 MHz

MPNSTM8L152K4U6
Active

STMicroelectronics STM8L152K4U6, STM8L EnergyLite 8-bit MCU, 16 MHz, 16 KB Flash, 2K x 8 RAM, 1K x 8 EEPROM, 29 I/O, 21x12b ADC, 1x12b DAC, LCD driver, -40°C to 85°C, 32-UFQFPN.

$2.9000Ref. price · indicative, final on quote
STMicroelectronics STM8L152K4U6 datasheet (PDF)
Packaging32-UFQFN Exposed Pad
RoHSROHS3 Compliant
SeriesSTM8L EnergyLite
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

STM8L152K4U6 specifications
ParameterValue
SeriesSTM8L EnergyLite
MountingSurface Mount
Oscillator typeInternal
Program memory typeFLASH
Voltage - supply (Vcc (Vdd))1.8V ~ 3.6V
Operating temperature-40°C ~ 85°C (TA)
Speed16MHz
PackageTray
RAM size2K x 8
Core size8-Bit
EEPROM size1K x 8
PeripheralsBrown-out Detect/Reset, DMA, IR, LCD, POR, PWM, WDT
ConnectivityI²C, IrDA, SPI, UART/USART
Number of i (O)29
Core processorSTM8
Case32-UFQFN Exposed Pad
Data convertersA/D 21x12b; D/A 1x12b
Program memory size16KB (16K x 8)

Product details

16 MHz 8-bit core with integrated LCD and analog peripherals

The STMicroelectronics STM8L152K4U6 is an 8-bit MCU from the STM8L EnergyLite series, built around the STM8 core running at 16 MHz. It packs 16 KB of Flash program memory, 2 KB of RAM, and 1 KB of EEPROM — enough for sensor fusion, metering, or human-interface control loops. The standout feature is the integrated LCD driver, which drives segment displays directly without an external controller, paired with a 21-channel 12-bit ADC and a single 12-bit DAC for analog signal chains.

Package and footprint for space-constrained boards

Frequently asked questions

Does STM8L152K4U6 have an internal oscillator and LCD driver?

Yes. The MCU includes an internal oscillator and an integrated LCD driver peripheral, so segment displays can be driven directly without an external controller or crystal for the core clock.

What are the key differences between STM8L152K4U6 and STM8L151K4U6?

The primary difference is the LCD driver: the STM8L152K4U6 includes an integrated LCD driver, while the STM8L151K4U6 does not. Both share the same 16 MHz core, 16 KB Flash, 2 KB RAM, 1 KB EEPROM, and 21x12-bit ADC. For designs requiring a segment display, the STM8L152 variant saves an external LCD controller.
