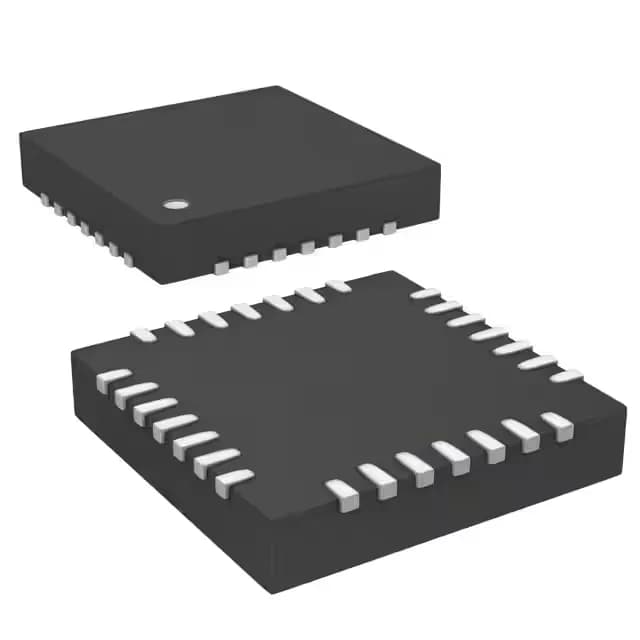

STMicroelectronics STM8L151G6U6 — Microcontrollers & Processors (MCU / MPU / DSP)

STM8L151G6U6 8-bit MCU, 32KB Flash, 16MHz, 28-UFQFPN

MPNSTM8L151G6U6
Active

STMicroelectronics STM8L EnergyLite series, STM8L151G6U6, 8-bit MCU, 32KB Flash, 2K x 8 RAM, 1K x 8 EEPROM, 16MHz, 1.8V~3.6V, 26 I/O, 18x12b ADC + 1x12b DAC, -40°C~85°C, 28-UFQFPN.

$3.0000Ref. price · indicative, final on quote
STMicroelectronics STM8L151G6U6 datasheet (PDF)
Packaging28-UFQFN
RoHSROHS3 Compliant
SeriesSTM8L EnergyLite
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

STM8L151G6U6 specifications
ParameterValue
SeriesSTM8L EnergyLite
MountingSurface Mount
Oscillator typeInternal
Program memory typeFLASH
Voltage - supply (Vcc (Vdd))1.8V ~ 3.6V
Operating temperature-40°C~85°C(TA)
Speed16MHz
PackageTray
RAM size2K x 8
Core size8-Bit
EEPROM size1K x 8
PeripheralsBrown-out Detect/Reset, DMA, IR, POR, PWM, WDT
ConnectivityI²C, IrDA, SPI, UART/USART
Number of i (O)26
Core processorSTM8
Case28-UFQFN
Data convertersA/D 18x12b; D/A 1x12b
Program memory size32KB (32K x 8)

Product details

The STM8L151G6U6 is an 8-bit MCU from ST's STM8L EnergyLite series, built around the STM8 core running at 16 MHz. It packs 32 KB of program Flash, 2 KB of SRAM, and 1 KB of data EEPROM — enough for a moderate sensor node or control loop without external memory. The 1 KB EEPROM is useful for calibration constants or fault logs that survive power loss, separate from the Flash firmware image.

Analog on the die: 18-channel 12-bit ADC and a 12-bit DAC

A 12-bit ADC with 18 multiplexed channels and a single 12-bit DAC are integrated, so many designs can skip an external converter. The ADC covers enough inputs for a multi-sensor front-end (thermistors, current shunts, potentiometers), while the DAC can generate a reference or analog output for a display driver or actuator setpoint.

Frequently asked questions

Does STM8L151G6U6 have a built-in ADC?

Yes, it integrates an 18-channel 12-bit ADC and a single 12-bit DAC, both on-chip.

What are the alternatives to STM8L151G6U6?

The STM32L151CBU6A is a functional alternative with a 32-bit ARM Cortex-M3 core running at 32 MHz, more I/O (37), and USB connectivity, but it uses a different package (32-pin UFQFPN) and is not pin-compatible. For a direct 8-bit replacement within the same family, look at other STM8L151 variants with matching Flash and package.
