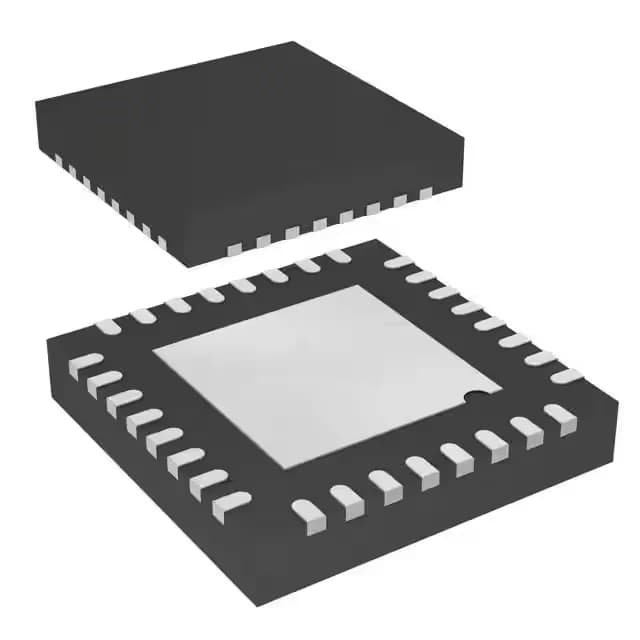

STMicroelectronics STM8AF6246UDX — Microcontrollers & Processors (MCU / MPU / DSP)

STM8AF6246UDX 8-bit MCU, 16 MHz, AEC-Q100, NRND

MPNSTM8AF6246UDX
NRND

STMicroelectronics STM8A series STM8AF6246UDX, 8-bit MCU, 16 MHz, 16 KB Flash, 2K x 8 RAM, 512 x 8 EEPROM, 25 I/O, I²C/LIN/SPI/UART, -40°C to 150°C, 32-VFQFPN.

$1.9182Ref. price · indicative, final on quote
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

STM8AF6246UDX specifications
ParameterValue
SeriesAutomotive, AEC-Q100, STM8A
MountingSurface Mount
Oscillator typeInternal
Program memory typeFLASH
Voltage - supply (Vcc (Vdd))3V ~ 5.5V
Operating temperature-40°C~150°C(TA)
Speed16MHz
PackageTape & Reel (TR)
RAM size2K x 8
Core size8-Bit
EEPROM size512 x 8
PeripheralsBrown-out Detect/Reset, POR, PWM, WDT
ConnectivityI²C, LINbus, SPI, UART/USART
Number of i (O)25
Core processorSTM8A
Case32-VFQFN Exposed Pad
Data convertersA/D 7x10b
Program memory size16KB (16K x 8)

Product details

The -40°C to 150°C operating temperature range covers under-hood and engine-adjacent environments where commercial-grade parts won't survive. With 25 I/O lines and peripherals including I²C, LINbus, SPI, and UART/USART, plus a 7-channel 10-bit ADC, this part handles mixed-signal control loops and serial bus bridging in a single 32-VFQFPN package.

That means it's still available for existing production but should not be selected for a new BOM. The STM8A family has pin-compatible higher-density and later-revision siblings; an ST FAE can point to the current recommendation for a new project. For a production line already qualified on this part, the NRND status doesn't trigger an immediate EOL — but it signals that ST is winding down the variant. Keep an eye on PCNs and plan a migration window.

Package and footprint — what the layout engineer sees

Frequently asked questions

Is STM8AF6246UDX obsolete?

It is not fully obsolete — it remains available for existing production — but it should not be selected for new BOMs. We can source it for ongoing manufacturing needs.

What is the replacement for STM8AF6246UDX?

ST does not list a single direct replacement order code in the public record for this NRND part. The STM8A family includes pin-compatible higher-density and later-revision options; an ST FAE or our team can help identify the current recommended part for a new design based on your memory and peripheral requirements.

Is STM8AF6246UDX suitable for automotive applications?

Yes — the STM8AF6246UDX is part of the Automotive, AEC-Q100 qualified STM8A series.
