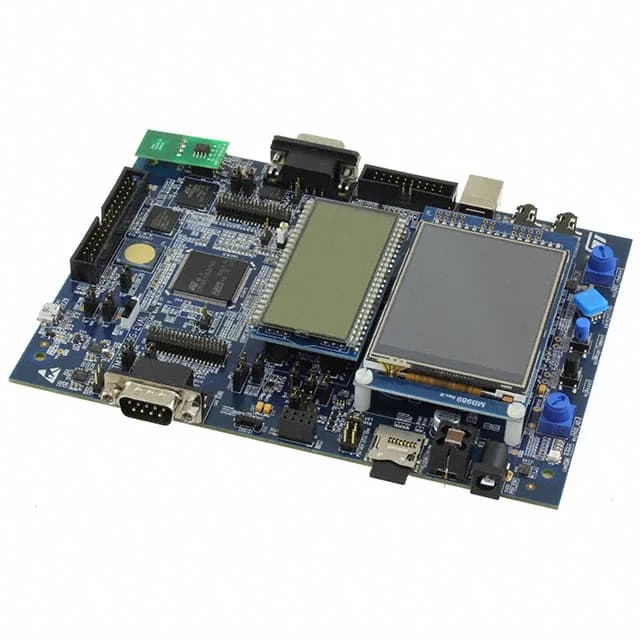

STMicroelectronics STM32L471QGI6 — Microcontrollers & Processors (MCU / MPU / DSP)

ST STM32L471QGI6 ARM Cortex-M4 MCU, 80MHz, 1MB Flash

MPNSTM32L471QGI6
Active

STMicroelectronics STM32L4 series, STM32L471QGI6, ARM Cortex-M4 32-Bit MCU, 80MHz, 1MB Flash, 128K x 8 SRAM, 109 I/O, CANbus, I²C, SPI, UART/USART, 1.71V~3.6V, -40°C~85°C, 132-UFBGA.

$11.0300Ref. price · indicative, final on quote
STMicroelectronics STM32L471QGI6 datasheet (PDF)
Packaging132-UFBGA
RoHSROHS3 Compliant
SeriesSTM32L4
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

STM32L471QGI6 specifications
ParameterValue
SeriesSTM32L4
MountingSurface Mount
Oscillator typeInternal
Program memory typeFLASH
Voltage - supply (Vcc (Vdd))1.71V ~ 3.6V
Operating temperature-40°C ~ 85°C (TA)
Speed80MHz
PackageTray
RAM size128K x 8
Core size32-Bit Single-Core
PeripheralsBrown-out Detect/Reset, DMA, PWM, WDT
ConnectivityCANbus, EBI/EMI, I²C, IrDA, LINbus, MMC/SD, QSPI, SAI, SPI, SWPMI, UART/USART
Number of i (O)109
Core processorARM® Cortex®-M4
Case132-UFBGA
Data convertersA/D 19x12b; D/A 2x12b
Program memory size1MB (1M x 8)

Product details

For production planning, the base product number STM32L471 is shared across density and package variants, so a migration to a larger BGA or a smaller flash option stays within the same family footprint.

Peripheral set — CAN, QSPI, SAI, and 19-channel 12-bit ADC

Connectivity includes CANbus, I²C, SPI, UART/USART, QSPI, and SAI — enough for a multi-sensor node with a serial Flash and an audio codec on the same die. Brown-out detect and DMA are built in, so the firmware can sleep deep and wake on a threshold.

Frequently asked questions

Can STM32L471QGI6 be programmed with ST-Link V2?

Yes, the STM32L4 series uses the standard SWD (Serial Wire Debug) interface supported by ST-Link V2 and V3.
