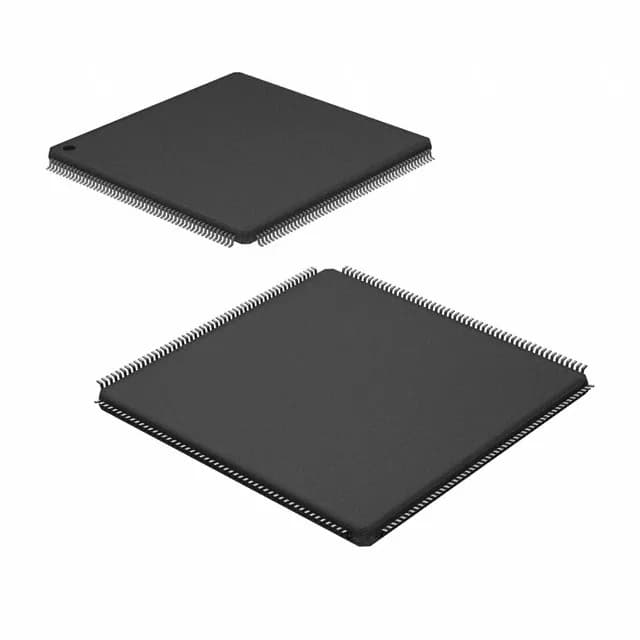

STMicroelectronics STM32F469BGT6 — Microcontrollers & Processors (MCU / MPU / DSP)

STM32F469BGT6 STM32F4 MCU, 180MHz, 1MB Flash, 208-LQFP

MPNSTM32F469BGT6
End of Life

STMicroelectronics STM32F4 series, 32-bit ARM Cortex-M4 single-core MCU at 180MHz; 1MB Flash, 384KB SRAM, 161 I/O, 208-LQFP tray pack; 1.7–3.6 V supply, -40 to 85°C; Ethernet MAC, USB OTG, 24×12b ADC, LCD controller, CANbus, dual QSPI/SDIO.

$16.1414Ref. price · indicative, final on quote
STMicroelectronics STM32F469BGT6 datasheet (PDF)
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

STM32F469BGT6 specifications
ParameterValue
SeriesSTM32F4
MountingSurface Mount
Oscillator typeInternal
Program memory typeFLASH
Voltage - supply (Vcc (Vdd))1.7V ~ 3.6V
Operating temperature-40°C~85°C(TA)
Speed180MHz
PackageTray
RAM size384K x 8
Core size32-Bit Single-Core
PeripheralsBrown-out Detect/Reset, DMA, I²S, LCD, POR, PWM, WDT
ConnectivityCANbus, EBI/EMI, Ethernet, I²C, IrDA, LINbus, SAI, SDIO, SPI, UART/USART, USB, USB OTG
Number of i (O)161
Core processorARM® Cortex®-M4
Case208-LQFP
Data convertersA/D 24x12b; D/A 2x12b
Program memory size1MB (1M x 8)

Product details

180 MHz Cortex-M4 with graphics and connectivity

The STM32F469BGT6: 1 MB Flash and 384 KB SRAM, with a 12-bit ADC array (24 channels) and a dual 12-bit DAC. The 208-pin LQFP package gives you 161 I/Os, making it a dense pinout for parallel bus interfaces like EBI/EMI and LCD controllers.

What the 180 MHz and 1 MB Flash mean for the BOM

At 180 MHz, the Cortex-M4 with FPU handles single-cycle DSP instructions and floating-point math without an external DSP. The 384 KB SRAM supports a VGA-resolution frame buffer or multiple large data buffers for sensor fusion.

Connectivity set for gateway and HMI designs

The STM32F469BGT6 includes an Ethernet MAC, USB OTG HS/FS, two CAN 2.0B interfaces, SDIO, and a dual Quad-SPI memory interface.

Frequently asked questions

How many I/O pins does STM32F469BGT6 have?

It provides 161 I/Os in the 208-LQFP package.

What is the replacement for STM32F469BGT6?

No official replacement or successor is listed for this active part. Within the STM32F4 series, pin-compatible options with different Flash/SRAM densities exist (e.g., STM32F469Ix variants), but the BGT6 remains the current production code for 1 MB Flash / 384 KB SRAM in the 208-LQFP.
