143-WLCSP — what the package means for the board
The STM32F429ZIY6TR is an STMicroelectronics STM32F4-series MCU built around an ARM Cortex-M4 core clocked at 180 MHz, with 2 MB of Flash and 256 KB of SRAM. The 114 GPIOs, LCD controller, Ethernet MAC, and dual 12-bit DACs put this part squarely in the human-machine-interface and connectivity tier: think touch-screen panels, industrial gateways, and embedded vision systems where you need a display and a network stack on a single chip.
180 MHz Cortex-M4 — bus margin and memory headroom
The 2 MB Flash is large enough to hold a full embedded display framebuffer plus application code without external memory for many designs. The 256 KB SRAM handles the typical Ethernet and USB buffers, but if you are running a high-resolution TFT with double buffering, budget for external SDRAM over the flexible memory controller. The 12-bit ADC bank (24 channels) and dual 12-bit DACs cover analog front-end tasks without an external converter.
Industrial temperature, active lifecycle
The product status is Active, and it carries ROHS3 compliance.

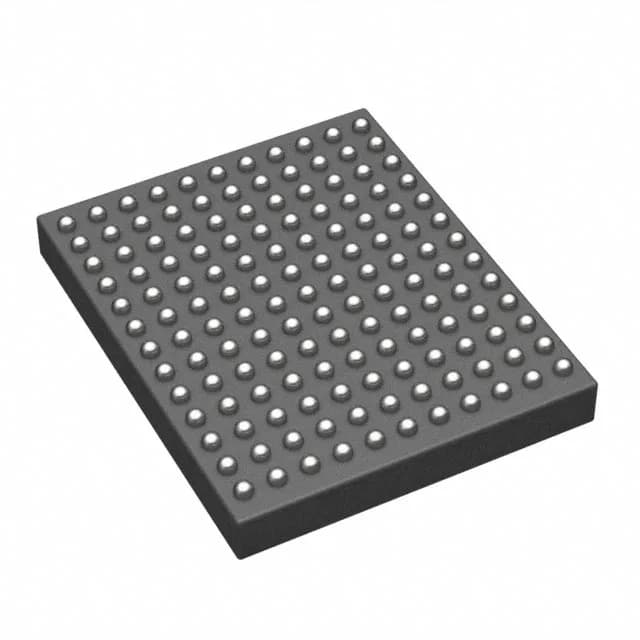

The 143-WLCSP is a direct-attach package with no leads and no exposed paddle — the solder balls are the only mechanical and electrical connection. That means the PCB land pattern must match the 4.52 x 5.55 mm ball array exactly, and rework requires a hot-air station with a fine nozzle and a preheat plate to avoid warping the thin substrate. Underfill is recommended for any product that sees vibration or thermal cycling.
