180 MHz Cortex-M4 — what the clock buys you
The STM32F429NGH6 runs the ARM Cortex-M4 core at 180 MHz, which sets the timing budget for memory access and peripheral throughput. At this clock, the 1 MB Flash and 256 KB RAM keep the pipeline fed without wait-state penalties for most code paths — useful for real-time control loops or driving the built-in LCD controller without an external frame buffer. The 168 I/O lines and the connectivity set (Ethernet, USB OTG, CAN, plus EBI/EMI for parallel bus expansion) mean this part fits as the main processor in an industrial HMI panel or a multi-protocol gateway.
Memory and peripheral budget for the BOM
With 1 MB Flash and 256 KB RAM, the STM32F429NGH6 sits in the mid-to-high density tier of the STM32F4 family. The Flash holds a full TCP/IP stack plus a small GUI library; the RAM handles two Ethernet frames and a display buffer. The 24-channel 12-bit ADC and dual 12-bit DAC cover analog front-end needs without an external converter. The internal oscillator and brown-out detect reduce external component count — the BOM can stay tight for a single-board controller.
Package and assembly constraints

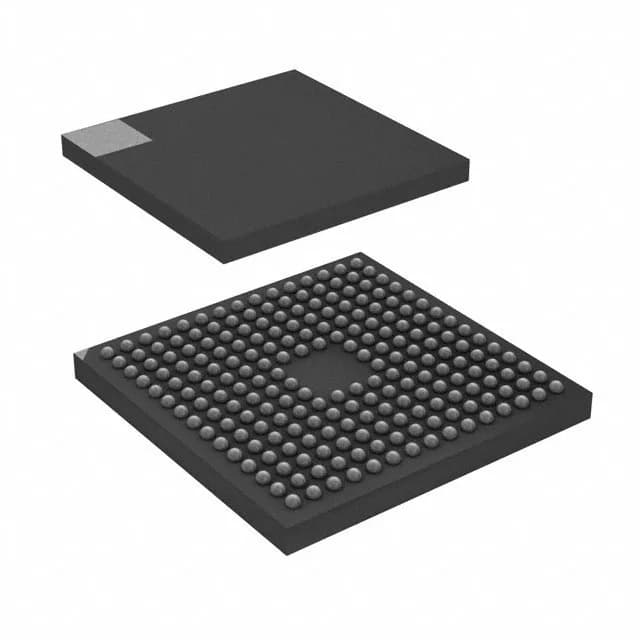

The 216-TFBGA (13x13 mm) package requires a reflow oven for assembly. The board needs at least four layers for fan-out. The -40°C to 85°C range and 1.8 V to 3.6 V supply cover industrial and telecom use.
