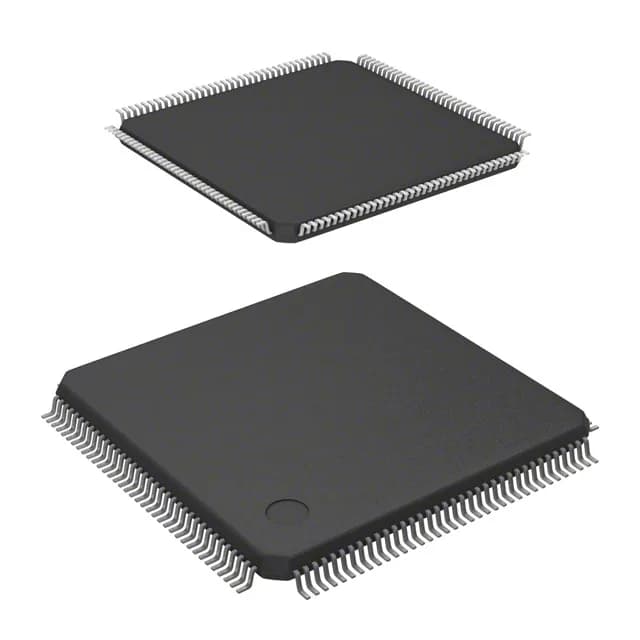

STMicroelectronics STM32F413ZHT6 — Microcontrollers & Processors (MCU / MPU / DSP)

STM32F413ZHT6 ARM Cortex-M4 MCU, 100 MHz, 1.5 MB Flash

MPNSTM32F413ZHT6
Active

STMicroelectronics STM32F4 series, STM32F413ZHT6, ARM Cortex-M4 32-bit MCU, 100 MHz, 1.5 MB Flash, 320 KB RAM, 114 I/O, 144-LQFP, -40°C to 85°C.

$16.9600Ref. price · indicative, final on quote
STMicroelectronics STM32F413ZHT6 datasheet (PDF)
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

STM32F413ZHT6 specifications
ParameterValue
SeriesSTM32F4
MountingSurface Mount
Oscillator typeInternal
Program memory typeFLASH
Voltage - supply (Vcc (Vdd))1.7V ~ 3.6V
Operating temperature-40°C~85°C(TA)
Speed100MHz
PackageTray
RAM size320K x 8
Core size32-Bit Single-Core
PeripheralsBrown-out Detect/Reset, DMA, I²S, LCD, POR, PWM, WDT
ConnectivityCANbus, EBI/EMI, I²C, IrDA, LINbus, MMC/SDIO, QSPI, SAI, SPI, UART/USART, USB OTG
Number of i (O)114
Core processorARM® Cortex®-M4
Case144-LQFP
Data convertersA/D 16x12b; D/A 2x12b
Program memory size1.5MB (1.5M x 8)

Product details

What this STM32F413ZHT6 brings to the bench

The 144-LQFP package (20x20 mm) gives you 114 I/O lines, making it a solid fit for industrial control panels, motor drives, or gateway boxes that need a bunch of sensors and actuators hanging off a single chip.

Peripheral mix — what is on the pins

The QSPI interface lets you attach a serial NOR Flash for code shadowing or data logging. The peripheral set also includes a DMA controller, PWM timers, a watchdog timer, and a brown-out detect/reset block. That brown-out detect is useful for keeping the system from corrupting Flash if the supply dips below the 1.7 V minimum operating voltage.

Frequently asked questions

What is the maximum clock speed of STM32F413ZHT6?

The STM32F413ZHT6 runs at a maximum clock speed of 100 MHz from its ARM Cortex-M4 core.

How much flash memory does STM32F413ZHT6 have?

The program memory is 1.5 MB of Flash, organized as 1.5M x 8 bits.

What is the difference between STM32F413ZHT6 and STM32F413ZGT6?

Both are in the same STM32F413 family with identical core, Flash, and RAM. The difference is the package: the ZHT6 uses a 144-LQFP, while the ZGT6 uses a 144-LQFP with a different pinout variant or a smaller body — check the package drawing for exact footprint compatibility before swapping on a board.
