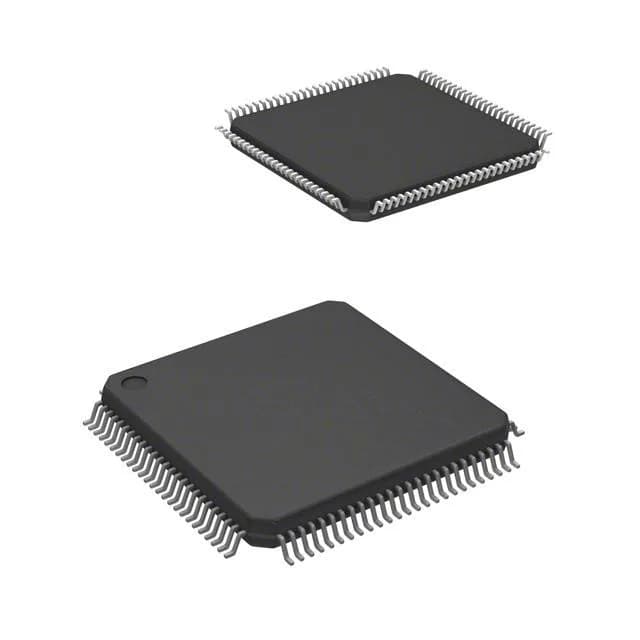

STMicroelectronics STM32F413VHT6 — Microcontrollers & Processors (MCU / MPU / DSP)

ST STM32F413VHT6 ARM Cortex-M4 MCU, 100 MHz, 1.5 MB Flash

MPNSTM32F413VHT6
Active

STMicroelectronics STM32F4 series, STM32F413VHT6, ARM Cortex-M4 32-bit MCU, 100 MHz, 1.5 MB Flash, 320 KB RAM, 81 I/O, CANbus, USB OTG, 100-LQFP, -40°C to 85°C.

$15.7100Ref. price · indicative, final on quote
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

STM32F413VHT6 specifications
ParameterValue
SeriesSTM32F4
MountingSurface Mount
Oscillator typeInternal
Program memory typeFLASH
Voltage - supply (Vcc (Vdd))1.7V ~ 3.6V
Operating temperature-40°C~85°C(TA)
Speed100MHz
PackageTray
RAM size320K x 8
Core size32-Bit Single-Core
PeripheralsBrown-out Detect/Reset, DMA, I²S, LCD, POR, PWM, WDT
ConnectivityCANbus, EBI/EMI, I²C, IrDA, LINbus, MMC/SDIO, QSPI, SAI, SPI, UART/USART, USB OTG
Number of i (O)81
Core processorARM® Cortex®-M4
Case100-LQFP
Data convertersA/D 16x12b; D/A 2x12b
Program memory size1.5MB (1.5M x 8)

Product details

The STM32F413VHT6 is a 32-bit ARM Cortex-M4 MCU from STMicroelectronics' STM32F4 series, clocked at 100 MHz. That 1.5 MB Flash means you can field-update firmware over CAN or USB OTG and still have room for a fallback bootloader.

Connectivity and I/O — one chip covers the interface bill

81 GPIOs in a 100-LQFP package give you headroom for a parallel LCD, external memory bus (EBI/EMI), and a handful of sensors or actuators. The peripheral set includes CANbus, USB OTG, multiple SPI and I²C, QSPI for fast serial NOR Flash, SAI for digital audio, and SDIO for an SD card slot. That covers most industrial and IoT interface requirements without external bridge chips. Two 12-bit DACs and sixteen 12-bit ADC channels handle analog I/O on the same die — no separate ADC part needed for a typical sensor-input or audio-output design.

Frequently asked questions

What is the speed of STM32F413VHT6?

The STM32F413VHT6 runs at 100 MHz from its ARM Cortex-M4 core.
