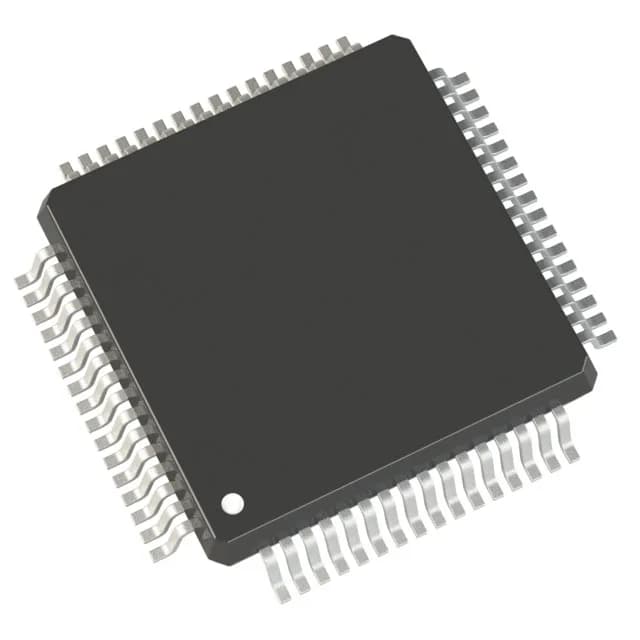

STMicroelectronics STM32F413RHT6 — Microcontrollers & Processors (MCU / MPU / DSP)

STM32F413RHT6 MCU, ARM Cortex-M4, 100 MHz, 1.5 MB Flash

MPNSTM32F413RHT6
Active

STMicroelectronics STM32F4 series STM32F413RHT6, ARM Cortex-M4, 32-Bit Single-Core, 100MHz, 1.5MB Flash, 320K x 8 RAM, 64-LQFP, -40°C ~ 85°C.

$12.8300Ref. price · indicative, final on quote
STMicroelectronics STM32F413RHT6 datasheet (PDF)
Packaging64-LQFP
RoHSROHS3 Compliant
SeriesSTM32F4
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

STM32F413RHT6 specifications
ParameterValue
SeriesSTM32F4
MountingSurface Mount
Oscillator typeInternal
Program memory typeFLASH
Voltage - supply (Vcc (Vdd))1.7V ~ 3.6V
Operating temperature-40°C ~ 85°C (TA)
Speed100MHz
PackageTray
RAM size320K x 8
Core size32-Bit Single-Core
PeripheralsBrown-out Detect/Reset, DMA, I²S, LCD, POR, PWM, WDT
ConnectivityCANbus, EBI/EMI, I²C, IrDA, LINbus, MMC/SDIO, QSPI, SAI, SPI, UART/USART, USB OTG
Number of i (O)50
Core processorARM® Cortex®-M4
Case64-LQFP
Data convertersA/D 16x12b; D/A 2x12b
Program memory size1.5MB (1.5M x 8)

Product details

The 64-LQFP package (10x10 mm) keeps the board footprint compact while offering 50 I/Os.

The base product number is STM32F413, and the suffix RHT6 denotes the 64-LQFP package with industrial temperature grade. ROHS3 compliance is confirmed, so no exemption expiry concerns for EU-market builds.

Memory headroom and peripheral fit for systems architects

With 1.5 MB of Flash, this MCU can host a full RTOS, a TCP/IP stack, and application code without splitting firmware across banks. The 320 KB SRAM supports moderate-sized data buffers — enough for a CANopen object dictionary or a USB audio frame buffer. The 12-bit ADC has 16 channels, and there are two 12-bit DACs, covering analog sensor input and control output in a single chip. Connectivity includes CANbus for industrial fieldbuses, USB OTG for host/device switching, QSPI for fast external Flash or RAM expansion, and SAI for I²S audio streams. The EBI/EMI interface can drive external parallel memory or displays if needed.

Frequently asked questions

Where can I buy STM32F413RHT6 with stock?

The STM32F413RHT6 is available to order through independent distribution. We source it against an RFQ and confirm current availability and pricing at quote time. Submit a request for the exact quantity and lead time for your BOM line.

Can STM32F413RHT6 replace STM32F413RGT6?

The STM32F413RGT6 is a higher-density variant with 1 MB Flash and 320 KB SRAM in a 64-LQFP package. The RHT6 offers 1.5 MB Flash, so it is a superset in memory. Pin compatibility depends on the specific package variant — verify the pinout against your PCB layout before substituting.
