STM32F401CEU6

Name: STM32F401CEU6
Brand: STMicroelectronics
SKU: STM32F401CEU6
Price: 15.18283 USD
Availability: InStock

STMicroelectronics

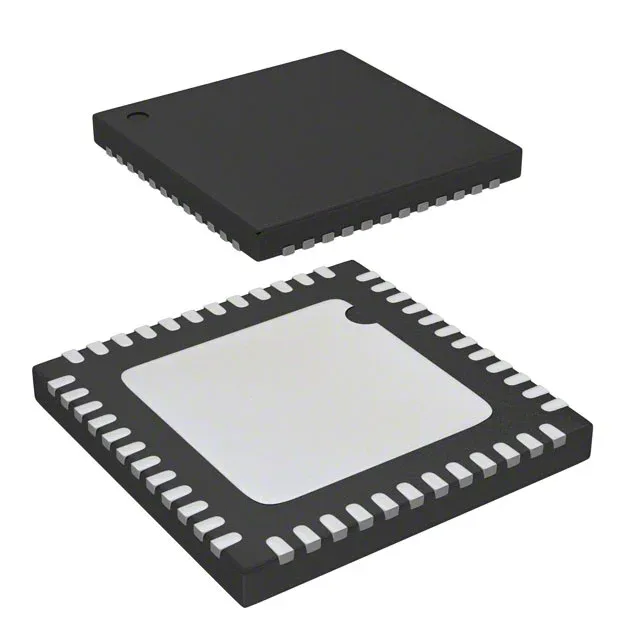

STMicroelectronics STM32F4 series 32-bit ARM Cortex-M4 MCU, STM32F401CEU6, 84 MHz, 512 KB Flash, 96 KB RAM, 36 I/O, 48-VFQFN exposed pad, -40 to 85 °C.

Download datasheet (PDF)

[IN STOCK] In Stock: 1 pcs

$15.18/ pc

Volume pricing

Buy Now

Inquire on WhatsApp Upload full BOM

MOQ 1 · Tray · RoHS · EIA-481 · DAP/DDP · T/T

[ORIGINAL SEALED] [PRE-SHIP HD PHOTOS] [30D WARRANTY · COC] [TRACKED DAP/DDP]

Technical specifications

STM32F401CEU6 specifications
Parameter / Attribute	Specification / Value
Series	STM32F4
Mounting	Surface Mount
Oscillator type	Internal
Program memory type	FLASH
Voltage - supply (Vcc (Vdd))	1.7V ~ 3.6V
Operating temperature	-40°C ~ 85°C (TA)
Speed	84MHz
Package	Tray
RAM size	96K x 8
Core size	32-Bit Single-Core
Peripherals	Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT
Connectivity	I²C, IrDA, LINbus, SDIO, SPI, UART/USART, USB OTG
Number of i (O)	36
Core processor	ARM® Cortex®-M4
Case	48-VFQFN Exposed Pad
Data converters	A/D 10x12b
Program memory size	512KB (512K x 8)

Technical details

The STM32F401CEU6 is a 32-bit ARM Cortex-M4 MCU from the STM32F4 series, clocked at 84 MHz with 512 KB of Flash and 96 KB of RAM.

Connectivity and I/O

With 36 general-purpose I/O and interfaces including I²C, SPI, UART/USART, USB OTG, and SDIO, this MCU can handle a display, external Flash, and a sensor bus without an external bridge. The USB OTG peripheral supports host and device modes, which is useful for data-logging or field-update scenarios.

The STM32F401CEU6 has an EOL hot status, indicating a last-time-buy phase. The base product number is STM32F401.
