STMicroelectronics

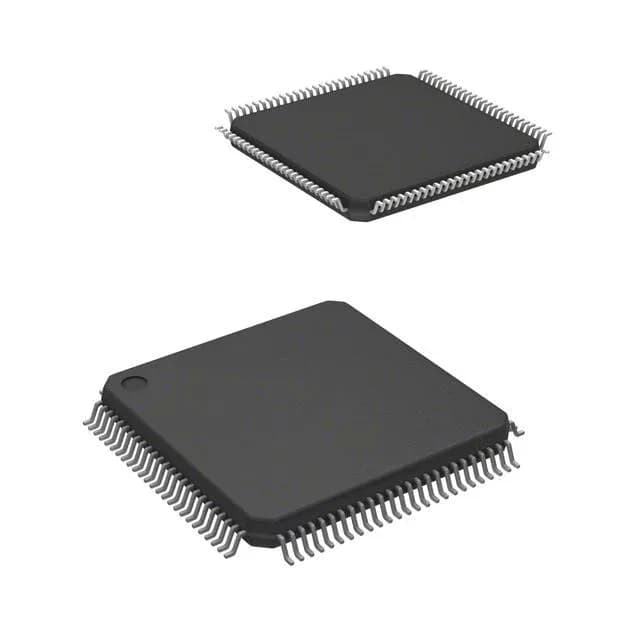

STMicroelectronics STM32F103VDT6, ARM Cortex-M3 32-bit MCU, 72 MHz, 384 KB Flash, 64 KB RAM, 100-LQFP, -40°C to 85°C, tray.
MOQ 1 · Tray · RoHS · EIA-481 · DAP/DDP · T/T
| Parameter / Attribute | Specification / Value |
|---|---|
| Series | STM32F1 |
| Mounting | Surface Mount |
| Oscillator type | Internal |
| Program memory type | FLASH |
| Voltage - supply (Vcc (Vdd)) | 2V ~ 3.6V |
| Operating temperature | -40°C~85°C(TA) |
| Speed | 72MHz |
| Package | Tray |
| RAM size | 64K x 8 |
| Core size | 32-Bit Single-Core |
| Peripherals | DMA, Motor Control PWM, PDR, POR, PVD, PWM, Temp Sensor, WDT |
| Connectivity | CANbus, I²C, IrDA, LINbus, SPI, UART/USART, USB |
| Number of i (O) | 80 |
| Core processor | ARM® Cortex®-M3 |
| Case | 100-LQFP |
| Data converters | A/D 16x12b; D/A 2x12b |
| Program memory size | 384KB (384K x 8) |
The STM32F103VDT6: 32-bit ARM Cortex-M3 MCU from ST's STM32F1 series, clocked at 72 MHz with 384 KB Flash and 64 KB SRAM.
Supply range 2 V to 3.6 V. Internal oscillator reduces external components.
72 MHz core. 12-bit ADC array (16 channels) and dual 12-bit DAC cover analog I/O.
