STMicroelectronics STIPNS1M50SDT-H — Discrete Semiconductors

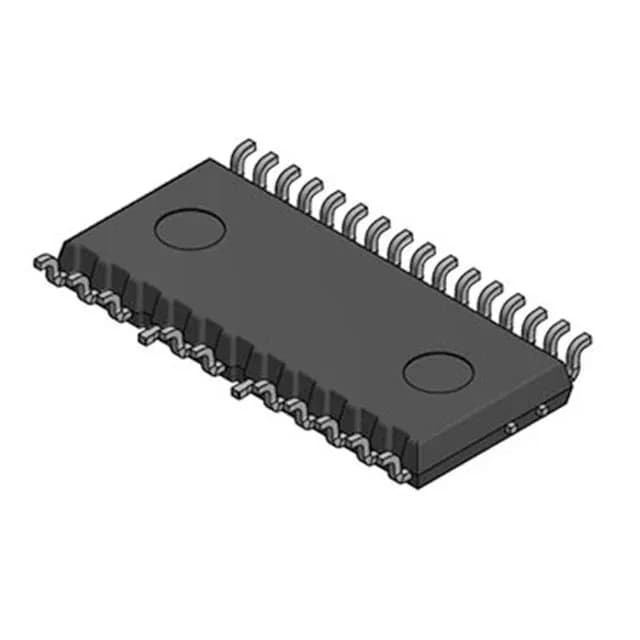

STIPNS1M50SDT-H SLLIMM-NANO MOSFET 3-Phase Inverter, 500V 1A

MPNSTIPNS1M50SDT-H
End of Life

STMicroelectronics SLLIMM™ series, STIPNS1M50SDT-H, MOSFET 3 Phase Inverter, 1 A, 500 V, 1000Vrms Isolation, 26-PowerSMD Module, Gull Wing, Surface Mount.

$8.85Ref. price · indicative, final on quote
Packaging26-PowerSMD Module, Gull Wing
SeriesSLLIMM™
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

STIPNS1M50SDT-H specifications
ParameterValue
TypeMOSFET
SeriesSLLIMM™
MountingSurface Mount
Voltage500 V
Voltage - isolation1000Vrms
Current1 A
PackageTape & Reel (TR); Cut Tape (CT)
Configuration3 Phase Inverter
Case26-PowerSMD Module, Gull Wing

Product details

SLLIMM-NANO 3-phase inverter — what this module is

The STMicroelectronics STIPNS1M50SDT-H is a SLLIMM-NANO series 3-phase inverter module built around MOSFET output stages. It integrates the three half-bridge legs needed to drive a small brushless DC or permanent-magnet synchronous motor from a single 26-PowerSMD package with gull-wing leads.

1000 Vrms isolation — where it connects

The 1000 Vrms isolation rating between the power stage and the control pins means this module can sit on the same PCB as a low-voltage MCU or DSP without a separate isolated power supply. The 26-PowerSMD gull-wing package is designed for reflow soldering onto a standard board; plan the creepage distance on the layout to maintain the isolation rating across the solder joints.

Frequently asked questions

What is the maximum current rating of STIPNS1M50SDT-H?

The continuous current rating is 1 A. This is the per-device limit for the 3-phase inverter stage.

What is the difference between STIPNS1M50SDT-H and STIPNS1M50SDT?

The '-H' suffix typically denotes a halogen-free / high-reliability variant within the SLLIMM-NANO family. Both share the same 500 V / 1 A MOSFET inverter core and 26-PowerSMD package; the '-H' version is specified for applications requiring reduced halogen content in the molding compound.

Does STIPNS1M50SDT-H include bootstrap diodes?

The SLLIMM-NANO family integrates bootstrap diodes for the high-side gate drive. This is a standard feature of the module architecture, eliminating the need for external bootstrap diodes on the PCB.
