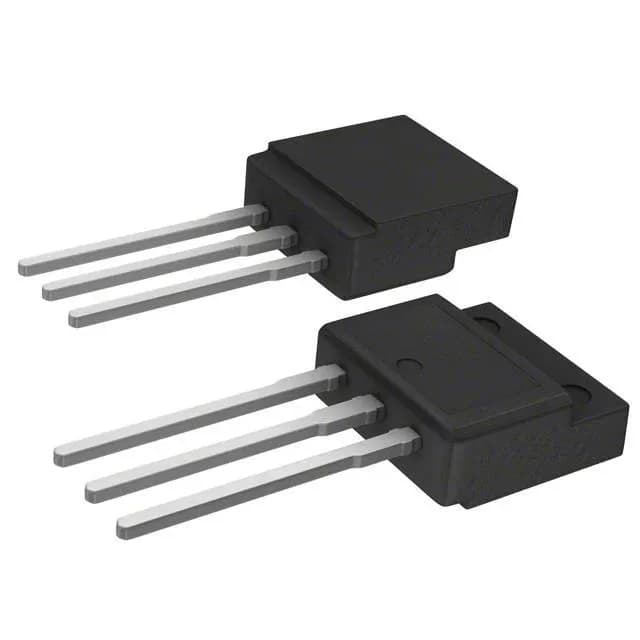

STMicroelectronics STFI12N60M2 N-Channel MOSFET, 600V, 9A

MPNSTFI12N60M2
Obsolete

STMicroelectronics MDmesh™ M2 series, STFI12N60M2, N-Channel MOSFET, 600 V Vdss, 9 A Id, 450 mOhm Rds(on) at 10 V, 16 nC Qg, TO-262-3 Full Pack I2PAK, -55°C to 150°C.

$1.6200Ref. price · indicative, final on quote
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

STFI12N60M2 specifications
ParameterValue
SeriesMDmesh™ M2
FET typeN-Channel
MountingThrough Hole
Drain to source voltage600 V
Drive voltage (Max rds on, min rds on)10V
Current - continuous drain (Id) @ 25°C9A (Tc)
Power dissipation25W (Tc)
Operating temperature-55°C ~ 150°C (TJ)
PackageTube
Vgs±25V
TechnologyMOSFET (Metal Oxide)
CaseTO-262-3 Full Pack, I²Pak
Vgs(th) (Max) @ id4V @ 250µA
Rds on (Max) @ id, vgs450mOhm @ 4.5A, 10V
Gate charge (Qg) (Max) @ vgs16 nC @ 10 V
Input capacitance (Ciss) (Max) @ vds538 pF @ 100 V

Product details

What the 600 V / 9 A rating buys you in a switching supply

Rds(on) is specified at 450 mOhm maximum with 4.5 A drain current and 10 V gate drive, which translates to roughly 2 W conduction loss at full rated current — manageable with the 25 W power dissipation limit and the full-pack's direct-to-heatsink mounting.

ST has marked the STFI12N60M2 as Obsolete, which means the manufacturer no longer produces this exact order code. The through-hole I2PAK package makes the part easier to authenticate visually than a surface-mount device: the laser etch on the package body should match ST's marking format for the MDmesh M2 series, and the date code should be consistent with the manufacturer's production timeline. Any lot with a date code after the EOL notice window or with inconsistent marking font should raise a flag.

Gate charge and input capacitance — sizing the driver

A driver capable of sourcing and sinking at least 1 A peak will switch this FET in the 50-100 ns range, which is typical for a 100-200 kHz switching converter.

Frequently asked questions

What is the Rds(on) of STFI12N60M2?

The maximum on-resistance is 450 mOhm at a drain current of 4.5 A and a gate-source voltage of 10 V. This is the figure to use for worst-case conduction loss calculations in a switching converter.
