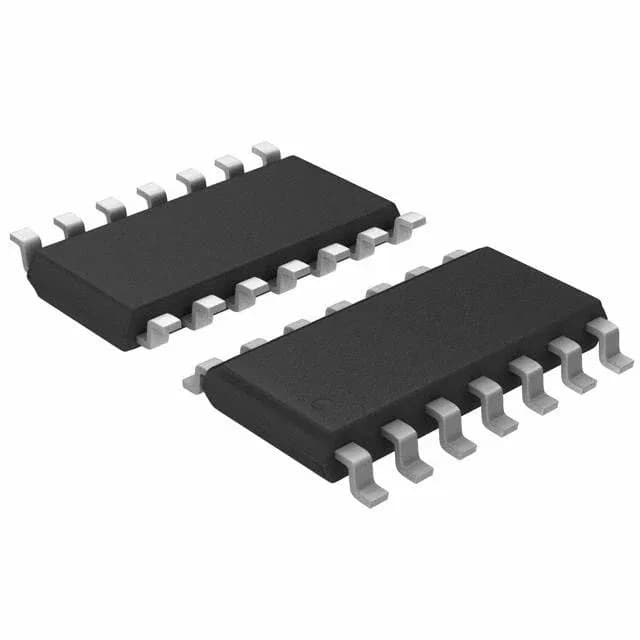

STMicroelectronics LM2902HD, quad general-purpose op-amp, 1.3 MHz gain bandwidth, 0.4 V/µs slew rate, 3 V to 30 V supply, -40°C to 150°C, 14-SOIC package.
| Parameter | Value |
|---|---|
| Output type | Push-Pull |
| Mounting | Surface Mount |
| Amplifier type | General Purpose |
| Voltage - input offset | 2 mV |
| Voltage - supply span | 30 V |
| Current - input bias | 20 nA |
| Current - output (Channel) | 20 mA |
| Operating temperature | -40°C ~ 150°C |
| Gain bandwidth product | 1.3 MHz |
| Package | Tube |
| Slew rate | 0.4V/µs |
| Case | 14-SOIC (0.154\", 3.90mm Width) |
| Number of circuits | 4 |
The STMicroelectronics LM2902HD is a quad general-purpose operational amplifier in a surface-mount package.
Input bias current is 20 nA typical, and input offset voltage is 2 mV, both adequate for non-precision signal chains where the 150°C rating is the overriding selection criterion.
A pin-compatible alternative in the same 14-SOIC footprint with a 150°C temperature rating would need to be qualified against the original design's supply voltage range (3 V to 30 V), gain-bandwidth (1.3 MHz), and slew rate (0.4 V/µs). Cross-reference searches against other quad general-purpose op-amps with extended temperature range are recommended.
The electrical specifications — gain-bandwidth, slew rate, input bias, and offset — are otherwise the same. The HD variant was specified for applications requiring higher junction temperature margin.
